EPC2110ENGRT

Obsolete

EPC

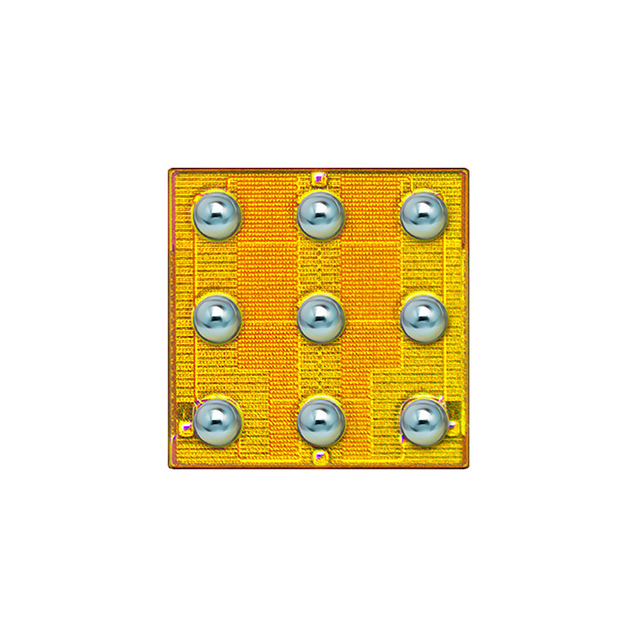

GANFET 2N-CH 120V 3.4A DIE

Search across all available documentation for this part.

Obsolete

EPC

GANFET 2N-CH 120V 3.4A DIE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPC2110ENGRT	EPC211 Series

Configuration	2 N-Channel (Dual) Common Source	2 N-Channel (Dual) Common Source, 2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	3.4 A	3.4 A
Drain to Source Voltage (Vdss)	120 V	30 - 120 V
Gate Charge (Qg) (Max) @ Vgs	0.8 nC	0.8 - 2.2 nC
Gate Charge (Qg) (Max) @ Vgs	-	5.7 nC
Input Capacitance (Ciss) (Max) @ Vds	-	230 - 590 pF
Input Capacitance (Ciss) (Max) @ Vds [Max]	80 pF	80 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Die	Die
Rds On (Max) @ Id, Vgs	60 mOhm	8 - 60 mOhm
Supplier Device Package	Die	Die
Technology	GaNFET (Gallium Nitride)	GaNFET (Gallium Nitride)
Vgs(th) (Max) @ Id	-	2.5 V
Vgs(th) (Max) @ Id [Max]	2.5 V	2.5 V

GANFET 2N-CH 120V 3.4A DIE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Package / Case	Configuration	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Technology	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs
EPC EPC2110ENGRT	150 °C	-40 °C	Surface Mount	80 pF	Die	2 N-Channel (Dual) Common Source	3.4 A	2.5 V	Die	60 mOhm	0.8 nC	GaNFET (Gallium Nitride)	120 V
EPC EPC2110	150 °C	-40 °C		80 pF	Die	2 N-Channel (Dual) Common Source	3.4 A	2.5 V	Die	60 mOhm	0.8 nC	GaNFET (Gallium Nitride)	120 V
EPC EPC2111	150 °C	-40 °C	Surface Mount		Die	2 N-Channel (Half Bridge)			Die	8 mOhm, 19 mOhm	2.2 nC	GaNFET (Gallium Nitride)	30 V	2.5 V	230 pF, 590 pF	5.7 nC
