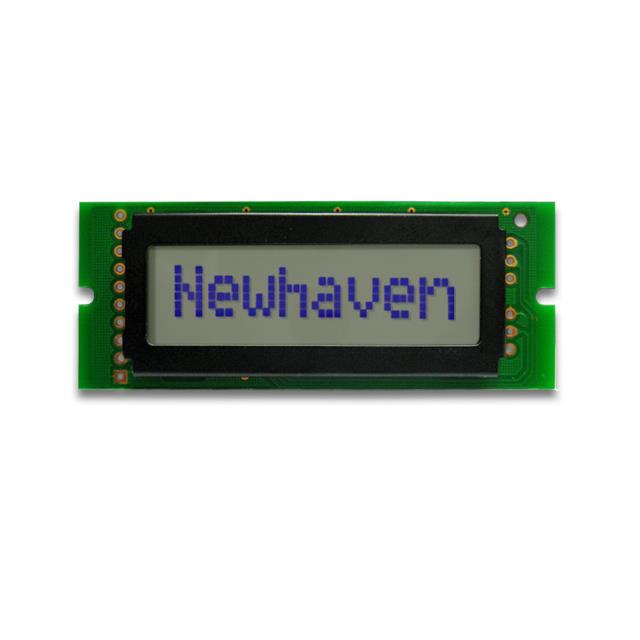

NHD-0108CZ-RN-GBW-33V

Active

Newhaven Display Intl

LCD MOD 8 DIG 8 X 1 REFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

NHD-0108CZ-RN-GBW-33V

Active

Newhaven Display Intl

LCD MOD 8 DIG 8 X 1 REFLECTIVE

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.89

Description

General part information

NHD-0108 Series

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 69.00mm x 27.00mm x 8.50mm

Documents

Technical documentation and resources

LCD Safe Handling Procedure

LCD Solvent Precautions

Datasheet

Specification	NHD-0108CZ-RN-GBW-33V	NHD-0108 Series

Background Color	Gray	Gray, Green
Backlight	Without Backlight	LED - White, Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	7.1 - 10.75 mm
Character Size	-	3.4 - 6.5 mm
Character Size	-	10.8 mm
Character Size [custom]	4.2 mm	4.2 - 5.02 mm
Character Size [custom]	7.71 mm	7.28 - 7.71 mm
Controller Type	SPLC780D, ST7066U	SPLC780D, ST7066U
Display Format [x]	8	8
Display Format [y]	1	1
Display Mode	Reflective	Transflective, Reflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Dot Size	-	0.6 - 1.3 mm
Dot Size	-	0.8 - 1.3 mm
Dot Size [custom]	0.8 mm	0.8 mm
Dot Size [custom]	0.92 mm	0.92 mm
Interface	Parallel	Parallel
Number of Characters	8	8
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	69 mm	53 - 84 mm
Outline L x W x H [y]	27 mm	24.2 - 44 mm
Outline L x W x H [z]	8.5 mm	6.25 - 13.5 mm
Text Color	Blue	Blue, Gray
Viewing Area [x]	45.2 mm	35 - 64.5 mm
Viewing Area [y]	13.8 mm	12.6 - 16.4 mm
Voltage - Supply	3.3 V	3.3 V
Voltage - Supply	-	2.7 - 4.7 V
Voltage - Supply	-	3.3 - 5.5 V

Part

Backlight

Character Size [custom]

Background Color

Voltage - Supply

Display Format [x]

Display Format [y]

Display Mode

Viewing Area [y]

Viewing Area [x]

Outline L x W x H [y]

Outline L x W x H [z]

Outline L x W x H [x]

Dot Size [custom]

Text Color

Interface

Display Type

Operating Temperature [Min]

Operating Temperature [Max]

Number of Characters

Character Format [y]

Character Format [x]

Controller Type

Character Size [z]

Character Size [y]

Dot Size [x]

Dot Size [y]

Voltage - Supply [Min]

Voltage - Supply [Max]

Character Size [x]

Newhaven Display Intl

NHD-0108CZ-FSW-GBW-3V3

LED - White

4.2 mm

7.71 mm

Gray

3.3 V

Transflective

13.8 mm

45.2 mm

27 mm

13 mm

69 mm

0.8 mm

0.92 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

Newhaven Display Intl

NHD-0108CZ-FSW-GBW-33V3

LED - White

4.2 mm

7.71 mm

Gray

3.3 V

Transflective

13.5 mm

45 mm

27 mm

13 mm

69 mm

0.8 mm

0.92 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

SPLC780D, ST7066U

Newhaven Display Intl

NHD-0108BZ-RN-YBW-33V

Without Backlight

Green

3.3 V

Reflective

12.6 mm

35 mm

24.2 mm

11 mm

53 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

SPLC780D, ST7066U

7.1 mm

3.4 mm

0.6 mm

0.8 mm

Newhaven Display Intl

NHD-0108BZ-RN-YBW-3V

Without Backlight

Green

Reflective

12.6 mm

35 mm

24.2 mm

11 mm

53 mm

Gray

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

7.1 mm

3.4 mm

0.6 mm

0.8 mm

2.7 V

3.3 V

Newhaven Display Intl

NHD-0108HZ-FSW-GBW

LED - White

5.02 mm

7.28 mm

Gray

Transflective

14.7 mm

51.2 mm

33.85 mm

6.25 mm

60.7 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

SPLC780D, ST7066U

0.94 mm

0.84 mm

3.1 V

3.5 V

Newhaven Display Intl

NHD-0108BZ-FSY-YBW-33V3

Green

3.3 V

Transflective

12.6 mm

35 mm

24.2 mm

11 mm

53 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

SPLC780D, ST7066U

7.1 mm

3.4 mm

0.6 mm

0.8 mm

Newhaven Display Intl

NHD-0108BZ-RN-GBW

Without Backlight

Gray

Reflective

12.6 mm

35 mm

24.2 mm

11 mm

53 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

SPLC780D, ST7066U

7.1 mm

3.4 mm

0.6 mm

0.8 mm

4.7 V

5.5 V

Newhaven Display Intl

NHD-0108BZ-FSY-YBW-3V3

Green

Transflective

12.6 mm

35 mm

24.2 mm

11 mm

53 mm

Gray

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

7.1 mm

3.4 mm

0.6 mm

0.8 mm

2.7 V

3.3 V

Newhaven Display Intl

NHD-0108FZ-FL-YBW-3V3

Green

Transflective

16.4 mm

64.5 mm

44 mm

13.5 mm

84 mm

Gray

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

10.75 mm

6.45 mm

1.25 mm

1.3 mm

2.7 V

3.3 V

Newhaven Display Intl

NHD-0108FZ-RN-YBW

Without Backlight

Green

Reflective

16.4 mm

64.5 mm

44 mm

9 mm

84 mm

Blue

Parallel

STN - Super-Twisted Nematic

-20 C

70 °C

8 Dots

5 Dots

SPLC780D, ST7066U

6.5 mm

1.3 mm

10.8 mm

Part	Backlight	Character Size [custom]	Character Size [custom]	Background Color	Voltage - Supply	Display Format [x]	Display Format [y]	Display Mode	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Dot Size [custom]	Dot Size [custom]	Text Color	Interface	Display Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Characters	Character Format [y]	Character Format [x]	Controller Type	Character Size [z]	Character Size [y]	Dot Size [x]	Dot Size [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [x]
Newhaven Display Intl NHD-0108CZ-FSW-GBW-3V3	LED - White	4.2 mm	7.71 mm	Gray	3.3 V	8	1	Transflective	13.8 mm	45.2 mm	27 mm	13 mm	69 mm	0.8 mm	0.92 mm	Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots
Newhaven Display Intl NHD-0108CZ-FSW-GBW-33V3	LED - White	4.2 mm	7.71 mm	Gray	3.3 V	8	1	Transflective	13.5 mm	45 mm	27 mm	13 mm	69 mm	0.8 mm	0.92 mm	Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U
Newhaven Display Intl NHD-0108BZ-RN-YBW-33V	Without Backlight			Green	3.3 V	8	1	Reflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U	7.1 mm	3.4 mm	0.6 mm	0.8 mm
Newhaven Display Intl NHD-0108BZ-RN-YBW-3V	Without Backlight			Green		8	1	Reflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Gray	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots		7.1 mm	3.4 mm	0.6 mm	0.8 mm	2.7 V	3.3 V
Newhaven Display Intl NHD-0108HZ-FSW-GBW	LED - White	5.02 mm	7.28 mm	Gray		8	1	Transflective	14.7 mm	51.2 mm	33.85 mm	6.25 mm	60.7 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U			0.94 mm	0.84 mm	3.1 V	3.5 V
Newhaven Display Intl NHD-0108BZ-FSY-YBW-33V3				Green	3.3 V	8	1	Transflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U	7.1 mm	3.4 mm	0.6 mm	0.8 mm
Newhaven Display Intl NHD-0108BZ-RN-GBW	Without Backlight			Gray		8	1	Reflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U	7.1 mm	3.4 mm	0.6 mm	0.8 mm	4.7 V	5.5 V
Newhaven Display Intl NHD-0108BZ-FSY-YBW-3V3				Green		8	1	Transflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Gray	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots		7.1 mm	3.4 mm	0.6 mm	0.8 mm	2.7 V	3.3 V
Newhaven Display Intl NHD-0108FZ-FL-YBW-3V3				Green		8	1	Transflective	16.4 mm	64.5 mm	44 mm	13.5 mm	84 mm			Gray	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots		10.75 mm	6.45 mm	1.25 mm	1.3 mm	2.7 V	3.3 V
Newhaven Display Intl NHD-0108FZ-RN-YBW	Without Backlight			Green		8	1	Reflective	16.4 mm	64.5 mm	44 mm	9 mm	84 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U		6.5 mm	1.3 mm	1.3 mm			10.8 mm
