TPS2HB16AQPWPRQ1

Active

Texas Instruments

40-V, 16-M&OMEGA;, 2-CH AUTOMOTIVE SMART HIGH-SIDE SWITCH WITH ADJUSTABLE CURRENT LIMIT 16-HTSSOP -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Reverse battery protection for high side switches +12

TPS2HB16AQPWPRQ1

Active

Texas Instruments

40-V, 16-M&OMEGA;, 2-CH AUTOMOTIVE SMART HIGH-SIDE SWITCH WITH ADJUSTABLE CURRENT LIMIT 16-HTSSOP -40 TO 125

Deep-Dive with AI

DocumentsDatasheet Reverse battery protection for high side switches +12

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPS2HB16AQPWPRQ1	TPS2HB16-Q1 Series

Current - Output (Max) [Max]	60 A	60 A
Fault Protection	Current Limiting (Adjustable), Over Temperature	Current Limiting (Adjustable), Over Temperature
Grade	Automotive	Automotive
Interface	On/Off	On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs [custom]	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	High Side	High Side
Output Type	N-Channel	N-Channel

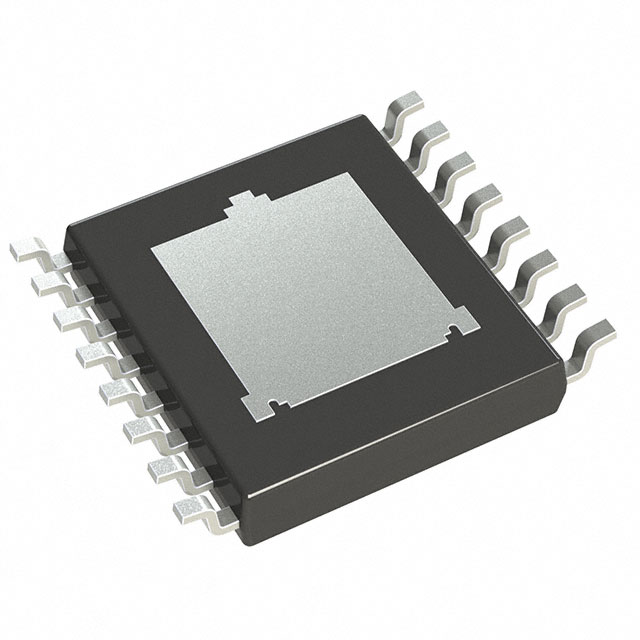

Package / Case	16-PowerTSSOP	16-PowerTSSOP
Package / Case [y]	4.4 mm	4.4 mm
Package / Case [y]	0.173 in	0.173 in
Qualification	AEC-Q100	AEC-Q100
Ratio - Input:Output [custom]	1:1	1:1
Rds On (Typ) [custom]	16 mOhm	16 mOhm
Supplier Device Package	16-HTSSOP	16-HTSSOP
Switch Type	General Purpose	General Purpose
Voltage - Load [Max]	28 V	28 V
Voltage - Load [Min]	3 V	3 V
Voltage - Supply (Vcc/Vdd)	Not Required	Not Required

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DigiKey	N/A	1	$ 2.19
		10	$ 1.62
		25	$ 1.48
		100	$ 1.32
		250	$ 1.25
		500	$ 1.20
		1000	$ 1.17
		3000	$ 1.12
		6000	$ 1.10
		9000	$ 1.09
Digikey	Cut Tape (CT)	1	$ 2.44
		10	$ 2.19
		25	$ 2.07
		100	$ 1.76
		250	$ 1.65
		500	$ 1.45
		1000	$ 1.20
	Digi-Reel®	1	$ 2.44
		10	$ 2.19
		25	$ 2.07
		100	$ 1.76
		250	$ 1.65
		500	$ 1.45
		1000	$ 1.20
	Tape & Reel (TR)	3000	$ 1.12
		6000	$ 1.08
Mouser Electronics	N/A	1	$ 2.20
		10	$ 1.49
		100	$ 1.33
		250	$ 1.26
		500	$ 1.21
		1000	$ 1.18
		3000	$ 1.17
Texas Instruments	LARGE T&R	1	$ 1.83
		100	$ 1.51
		250	$ 1.09
		1000	$ 0.82
Win Source Electronics	N/A	30	$ 1.70
		75	$ 1.40
		115	$ 1.35
		155	$ 1.31
		200	$ 1.27
		265	$ 1.14

TPS2HB16-Q1 Series

40-V, 16-mΩ, 2-ch automotive smart high-side switch with adjustable current limit

Part	Voltage - Supply (Vcc/Vdd)	Current - Output (Max) [Max]	Number of Outputs [custom]	Output Configuration	Switch Type	Grade	Interface	Supplier Device Package	Fault Protection	Rds On (Typ) [custom]	Mounting Type	Ratio - Input:Output [custom]	Qualification	Package / Case [y]	Package / Case	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Voltage - Load [Max]	Voltage - Load [Min]
Texas Instruments TPS2HB16AQPWPRQ1 The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles. The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP package which allows for reduced PCB footprint. The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles. The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP package which allows for reduced PCB footprint.	Not Required	60 A	2	High Side	General Purpose	Automotive	On/Off	16-HTSSOP	Current Limiting (Adjustable), Over Temperature	16 mOhm	Surface Mount	1:1	AEC-Q100	4.4 mm	16-PowerTSSOP	0.173 in	-40 °C	125 °C	N-Channel	28 V	3 V
Texas Instruments TPS2HB16FQPWPRQ1 The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles. The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP package which allows for reduced PCB footprint. The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles. The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP package which allows for reduced PCB footprint.	Not Required	60 A	2	High Side	General Purpose	Automotive	On/Off	16-HTSSOP	Current Limiting (Adjustable), Over Temperature	16 mOhm	Surface Mount	1:1	AEC-Q100	4.4 mm	16-PowerTSSOP	0.173 in	-40 °C	125 °C	N-Channel	28 V	3 V
Texas Instruments TPS2HB16BQPWPRQ1 The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles. The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP package which allows for reduced PCB footprint. The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A. The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles. The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime. The TPS2HB16-Q1 is available in a HTSSOP package which allows for reduced PCB footprint.	Not Required	60 A	2	High Side	General Purpose	Automotive	On/Off	16-HTSSOP	Current Limiting (Adjustable), Over Temperature	16 mOhm	Surface Mount	1:1	AEC-Q100	4.4 mm	16-PowerTSSOP	0.173 in	-40 °C	125 °C	N-Channel	28 V	3 V

Description

General part information

TPS2HB16-Q1 Series

The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through areliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A.

The high current limit range allows for usage in loads that require large transient currents, while the low current limit range provides improved protection for loads that do not require high peak current. The device is capable of reliably driving variousload profiles.

The TPS2HB16-Q1 also provides a high accuracy analog current sense that allows for improved load diagnostics. By reporting load current and device temperature to a system MCU, the device enables predictive maintenance and load diagnostics that improves the system lifetime.
