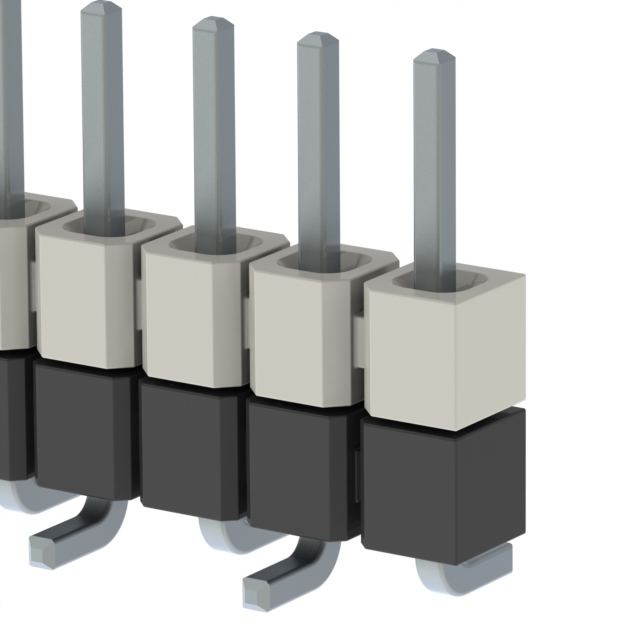

HW-08-17-T-S-275-SM

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK SMD TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK SMD TIN

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Color	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Row Spacing [x]	Row Spacing	Number of Positions	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Number of Positions
Samtec Inc. HW-08-17-S-D-293-SM	Solder	7.442 mm	0.293 in	2	Black	Gold	3.099 mm	0.122 in	0.1 in	2.54 mm	16	2.54 mm	0.1 in	0.415 in	10.541 mm	30 µin	0.76 µm	Surface Mount
Samtec Inc. HW-08-17-T-S-275-SM	Solder	6.985 mm	0.275 in	1	Black	Tin	3.556 mm	0.14 in				2.54 mm	0.1 in	0.415 in	10.541 mm			Surface Mount	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	28	$ 1.42

General part information

8 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
