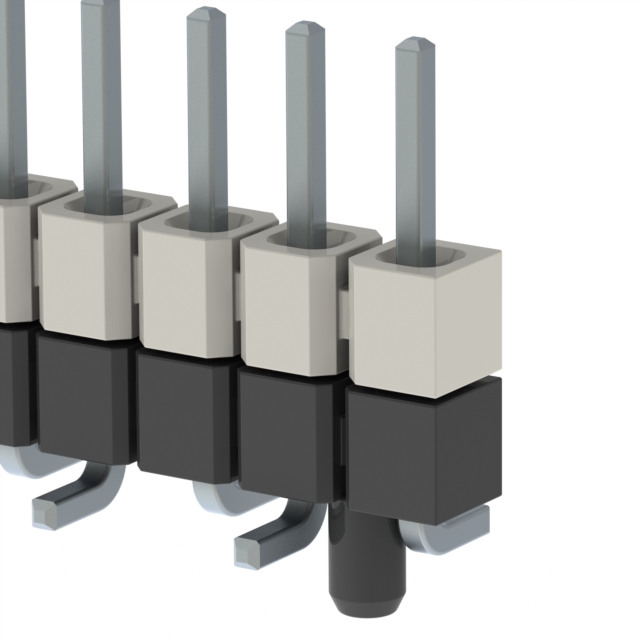

CONN HDR 16POS 0.1 STACK SMD
| Part | Termination | Length - Stack Height [x] | Length - Stack Height [x] | Number of Rows | Color | Contact Finish - Post (Mating) | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Row Spacing [x] | Row Spacing | Number of Positions | Pitch [x] | Pitch [x] | Length - Overall Pin [x] | Length - Overall Pin [x] | Contact Finish Thickness - Post (Mating) | Contact Finish Thickness - Post (Mating) | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Solder | 7.442 mm | 0.293 in | 2 | Black | Gold | 3.099 mm | 0.122 in | 0.1 in | 2.54 mm | 16 | 2.54 mm | 0.1 in | 0.415 in | 10.541 mm | 30 µin | 0.76 µm | Surface Mount | |
Samtec Inc. | Solder | 6.985 mm | 0.275 in | 1 | Black | Tin | 3.556 mm | 0.14 in | 2.54 mm | 0.1 in | 0.415 in | 10.541 mm | Surface Mount | 8 |
