AM12T-1205SZ

Active

aimtec

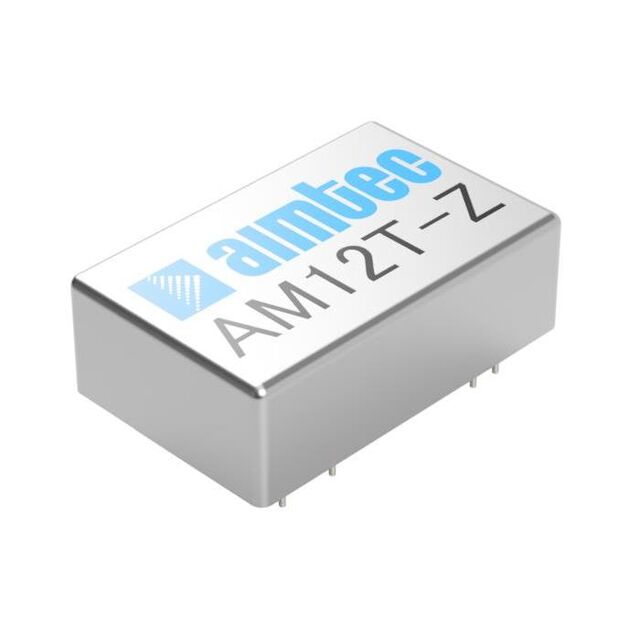

DC DC CONVERTER 5V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM12T-1205SZ

Active

aimtec

DC DC CONVERTER 5V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.00
		5	$ 23.57
		10	$ 22.98
		25	$ 22.22
		50	$ 21.66
		100	$ 21.12
		250	$ 20.42
		500	$ 19.91

Description

General part information

AM12T Series

Isolated Module DC DC Converter 1 Output 5V 2.4A 9V - 18V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM12T-1205SZ	AM12T Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE, UL
Current - Output (Max) [Max]	2.4 A	2.4 - 3.5 A
Efficiency	89 %	87 - 89 %
Features	Remote On/Off	Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	23-DIP Module	24-DIP Module, 8 Leads, 24-DIP Module, 23-DIP Module
Package / Case	8 Leads	8 Leads
Power (Watts)	12 W	12 W
Size / Dimension	-	10.7 mm
Size / Dimension	-	20.3 mm
Size / Dimension [x]	31.8 mm	31.8 mm
Size / Dimension [x]	1.25 "	1.25 "
Size / Dimension [y]	0.8 in	0.8 in
Size / Dimension [y]	20.3 mm	20.3 mm
Size / Dimension [z]	0.4 "	0.4 - 0.42 in
Size / Dimension [z]	10.2 mm	10.2 mm
Supplier Device Package	24-DIP	24-DIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	18 - 75 V
Voltage - Input (Min) [Min]	9 V	9 - 36 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	5 V	3.3 - 5.1 V

AM12T Series

DC DC CONVERTER 5.1V 12W

Part	Approval Agency	Mounting Type	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package	Package / Case
aimtec AM12TW-2405SZ	CE	Through Hole	5.1 V	1	9 V	24-DIP Module, 8 Leads	2.4 A	36 V	12 W	Isolated Module	89 %	85 °C	-40 °C	1.6 kV	ITE (Commercial)	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in
aimtec AM12TW-2403SZ	CE, UL	Through Hole	3.3 V	1	9 V	24-DIP Module	3.5 A	36 V	12 W	Isolated Module	87 %	85 °C	-40 °C	1.6 kV	ITE (Commercial)	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	Remote On/Off
aimtec AM12T-1203SZ	CE	Through Hole	3.3 V	1	9 V	24-DIP Module	3.5 A	18 V	12 W	Isolated Module	87 %	85 °C	-40 °C	1.6 kV	ITE (Commercial)		1.25 "	0.8 in		31.8 mm	0.4 "	Remote On/Off	10.2 mm	20.3 mm
aimtec AM12T-4805SZ	CE	Through Hole	5 V	1	36 V	24-DIP Module	2.4 A	75 V	12 W	Isolated Module	89 %	85 °C	-40 °C	1.6 kV	ITE (Commercial)		1.25 "	0.8 in		31.8 mm	0.4 "	Remote On/Off	10.2 mm	20.3 mm
aimtec AM12T-1205SZ	CE	Through Hole	5 V	1	9 V	23-DIP Module	2.4 A	18 V	12 W	Isolated Module	89 %	85 °C	-40 °C	1.6 kV	ITE (Commercial)		1.25 "	0.8 in		31.8 mm	0.4 "	Remote On/Off	10.2 mm	20.3 mm	24-DIP	8 Leads
aimtec AM12TW-4805SZ	CE, UL	Through Hole	5.1 V	1	18 V	24-DIP Module	2.4 A	75 V	12 W	Isolated Module	89 %	85 °C	-40 °C	1.6 kV	ITE (Commercial)	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	Remote On/Off
