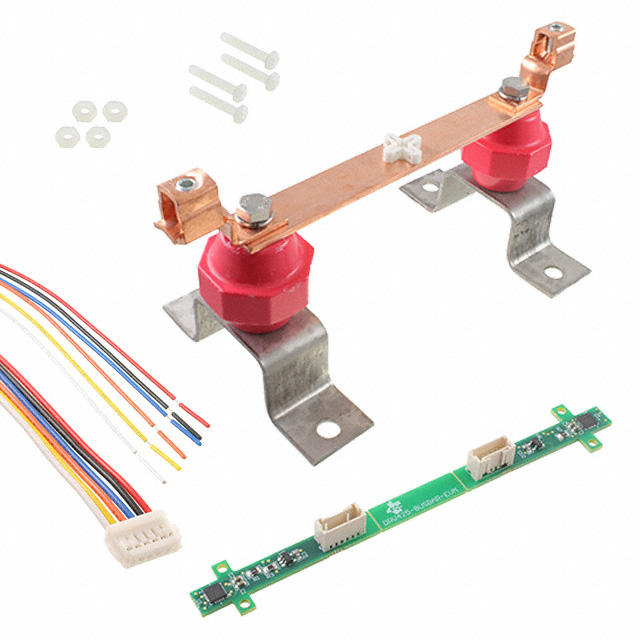

DRV425-BUSBAR-EVM
ActiveDRV425-BUSBAR-EVM
Deep-Dive with AI
Search across all available documentation for this part.
DRV425-BUSBAR-EVM
ActiveDRV425-BUSBAR-EVM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DRV425-BUSBAR-EVM | DRV425 Series |
|---|---|---|
| Axis | - | Single |
| Bandwidth | - | 32 - 47 kHz |
| Current - Output (Max) | - | 20 mA |
| Current - Supply (Max) | - | 10 mA |
| Features | - | Selectable Scale |
| Grade | - | Automotive |
| Interface | Analog | Analog |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 - 150 °C |
| Operating Temperature | - | -50 - -40 °C |
| Output Type | - | Analog Voltage |
| Package / Case | - | 20-WFQFN Exposed Pad |
| Qualification | - | AEC-Q100 |
| Sensing Range [Max] | 2 mT | 2 mT |
| Sensing Range [Min] | -2 mT | -2 mT |
| Sensor Type | Current Sensor | Current Sensor |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-QFN (4x4) |
| Technology | - | Fluxgate |
| Voltage - Supply [Max] | 5.25 V | 5.25 - 5.5 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 1 | $ 118.80 | |
| Digikey | Bulk | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 118.80 | |
DRV425 Series
Fully-integrated fluxgate magnetic sensor for open-loop applications
| Part | Interface | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Range [Min] | Sensing Range [Max] | Sensor Type | Supplied Contents | Current - Supply (Max) [Max] | Package / Case | Technology | Current - Output (Max) [Max] | Output Type | Supplier Device Package | Features | Bandwidth | Mounting Type | Axis | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DRV425-BUSBAR-EVM | Analog | 3 V | 5.25 V | -2 mT | 2 mT | Current Sensor | Board(s) | ||||||||||||||
Texas Instruments DRV425RTJR | 3 V | 5.5 V | -2 mT | 2 mT | 10 mA | 20-WFQFN Exposed Pad | Fluxgate | 20 mA | Analog Voltage | 20-QFN (4x4) | Selectable Scale | 32 kHz, 47 kHz | Surface Mount | Single | 150 °C | -50 °C | |||||
Texas Instruments DRV425QWRTJRQ1 | 3 V | 5.5 V | -2 mT | 2 mT | 10 mA | 20-WFQFN Exposed Pad | Fluxgate | Analog Voltage | 20-QFN (4x4) | 32 kHz, 47 kHz | Surface Mount | Single | 125 °C | -40 °C | Automotive | AEC-Q100 | |||||
Texas Instruments DRV425EVM | Analog | 3 V | 5.5 V | -2 mT | 2 mT | Current Sensor | Board(s) | ||||||||||||||
Texas Instruments DRV425RTJT | 3 V | 5.5 V | -2 mT | 2 mT | 20-WFQFN Exposed Pad | Fluxgate | Analog Voltage | 20-QFN (4x4) | 32 kHz, 47 kHz | Surface Mount | Single | 125 °C | -40 °C |
Description
General part information
DRV425 Series
The DRV425 is designed for single-axis magnetic field-sensing applications and enables electrically-isolated, high-sensitivity, and precise dc- and ac-field measurements. The device provides the unique and proprietary, integrated fluxgate sensor (IFG) with an internal compensation coil to support a high-accuracy sensing range of ±2 mT with a measurement bandwidth of up to 47 kHz. The low offset, offset drift, and noise of the sensor, combined with the precise gain, low gain drift, and very low nonlinearity provided by the internal compensation coil, result in unrivaled magnetic field measurement precision. The output of the DRV425 is an analog signal proportional to the sensed magnetic field.
The DRV425 offers a complete set of features, including an internal difference amplifier, on-chip precision reference, and diagnostic functions to minimize component count and system-level cost.
The DRV425 is available in a thermally-enhanced, non-magnetic, thin WQFN package with a PowerPAD™ for optimized heat dissipation, and is specified for operation over the extended industrial temperature range of –40°C to +125°C.
