TMS-106-01-G-S
ActiveSamtec Inc.

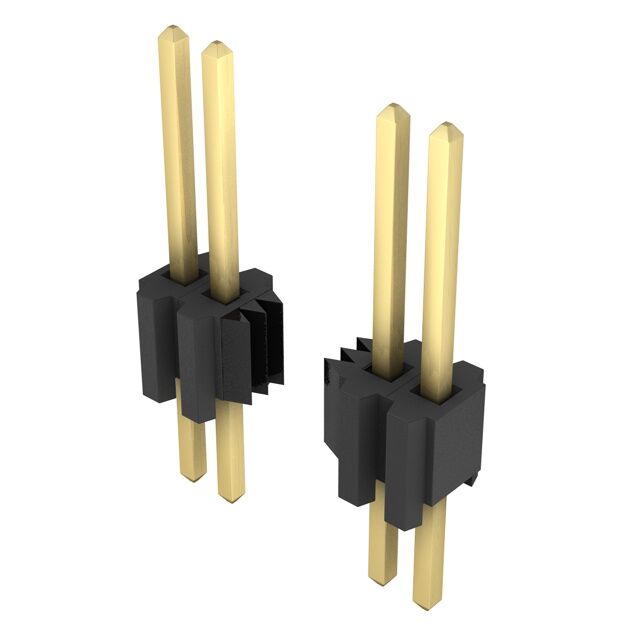

CONN HEADER VERT 6POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
TMS-106-01-G-S
ActiveSamtec Inc.
CONN HEADER VERT 6POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS-106-01-G-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.45 " |
| Overall Contact Length | 11.43 mm |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
TMS-106 Series
| Part | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Connector Type | Shrouding | Material Flammability Rating | Contact Type | Current Rating (Amps) | Termination | Contact Material | Insulation Material | Number of Rows | Insulation Color | Fastening Type | Insulation Height | Insulation Height | Number of Positions Loaded | Mounting Type | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Length - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Overall Contact Length | Overall Contact Length | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post | Number of Positions Loaded [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Square | 0.12 in | 3.05 mm | -55 °C | 125 °C | Gold | 6 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 1 | Black | Push-Pull | 0.1 in | 2.54 mm | All | Through Hole | 0.1 in | 2.54 mm | 3 µin | 0.076 µm | Tin | ||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | Square | 0.12 in | 3.05 mm | -55 °C | 125 °C | Gold | 6 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 1 | Black | Push-Pull | 0.1 in | 2.54 mm | All | Through Hole | 5.84 mm | 10 çin | 0.25 çm | Gold | 0.23 in | 3 µin | 0.076 µm | 0.45 " | 11.43 mm | ||||||||
Samtec Inc. | Square | 0.14 in | 3.56 mm | -55 °C | 125 °C | Gold | 6 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 1 | Black | Push-Pull | All | Through Hole Right Angle | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Tin | 0.098 in | 2.5 mm | ||||||||||||
Samtec Inc. | Square | -55 °C | 125 °C | Gold | 12 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 2 | Black | Push-Pull | 0.1 in | 2.54 mm | All | Through Hole | 5.84 mm | 30 Áin | 0.76 Ám | Tin | 0.23 in | 0.505 in | 12.83 mm | 2.54 mm | 0.1 in | 4.45 mm | 0.175 in | ||||||||
Samtec Inc. | Square | 0.12 in | 3.05 mm | -55 °C | 125 °C | Gold | 12 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 2 | Black | Push-Pull | 0.1 in | 2.54 mm | All | Through Hole | 0.19 " | 4.83 mm | 10 çin | 0.25 çm | Gold | 3 µin | 0.076 µm | 0.41 in | 10.41 mm | 2.54 mm | 0.1 in | ||||||
Samtec Inc. | Square | 0.12 in | 3.05 mm | -55 °C | 125 °C | Gold | 12 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 2 | Black | Push-Pull | 0.1 in | 2.54 mm | All | Through Hole | 0.1 in | 2.54 mm | 30 Áin | 0.76 Ám | Tin | 2.54 mm | 0.1 in | ||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | Square | 0.12 in | 3.05 mm | -55 °C | 125 °C | Gold | 6 | 0.05 in | 1.27 mm | Header | Unshrouded | UL94 V-0 | Male Pin | 5 A | Solder | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 1 | Black | Push-Pull | 0.1 in | 2.54 mm | Through Hole | 5.84 mm | 10 çin | 0.25 çm | Gold | 0.23 in | 3 µin | 0.076 µm | 0.45 " | 11.43 mm | 5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 50 | $ 1.11 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.60 | |||
| 2000 | $ 0.55 | |||
| 5000 | $ 0.54 | |||
Description
General part information
TMS-106 Series
Connector Header Through Hole 6 position 0.050" (1.27mm)
Documents
Technical documentation and resources
