BQ76942EVM
ActiveTexas Instruments

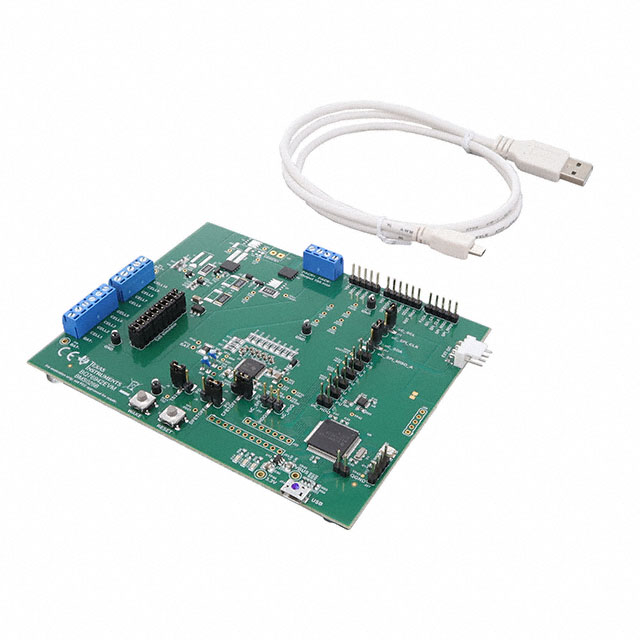

EVAL BOARD FOR BQ76942
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BQ76942EVM
ActiveTexas Instruments
EVAL BOARD FOR BQ76942
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ76942EVM | BQ76942 Series |
|---|---|---|
| Battery Chemistry | - | LiFePO4/Li-ion, Lithium Ion/Polymer |
| Contents | Board(s), Cable(s) | Board(s), Cable(s) |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit, Over Temperature |
| Function | Battery Monitor | Multi-Function Controller, Battery Monitor |
| Interface | - | SPI, I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 10 |
| Number of Cells | - | 3 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 48-TQFP |
| Primary Attributes | Li-Pol, LiFePO4, Li-Ion | Li-Pol, LiFePO4, Li-Ion |
| Primary Attributes [Max] | 10 Cells | 10 Cells |
| Primary Attributes [Min] | 3 Cells | 3 Cells |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Supplied Contents | Board(s), Cable(s) | Board(s), Cable(s) |
| Supplier Device Package | - | 48-TQFP (7x7) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ76942 | BQ76942 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 298.80 | |
BQ76942 Series
3-SERIES TO 10-SERIES MULTICELL BATTERY MONITOR AND PROTECTOR
| Part | Supplier Device Package | Fault Protection | Function | Battery Chemistry | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Mounting Type | Package / Case | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Secondary Attributes | Supplied Contents | Utilized IC / Part | Contents | Type | Primary Attributes [Min] | Primary Attributes | Primary Attributes [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ7694201PFBR | 48-TQFP (7x7) | Over Current, Over Temperature, Over Voltage, Short Circuit | Multi-Function Controller | LiFePO4/Li-ion | 10 | 3 | Surface Mount | 48-TQFP | SPI | 85 °C | -40 °C | ||||||||
Texas Instruments BQ7694204PFBR | 48-TQFP (7x7) | Over Current, Over Temperature, Over Voltage, Short Circuit | Multi-Function Controller | LiFePO4/Li-ion | 10 | 3 | Surface Mount | 48-TQFP | SPI | 85 °C | -40 °C | ||||||||
Texas Instruments BQ76942EVM | Battery Monitor | Graphical User Interface (GUI) | Board(s), Cable(s) | BQ76942 | Board(s), Cable(s) | Power Management | 3 Cells | Li-Ion, Li-Pol, LiFePO4 | 10 Cells | ||||||||||
Texas Instruments BQ76942PFBR | 48-TQFP (7x7) | Over Current, Over Temperature, Over Voltage, Short Circuit | Multi-Function Controller | Lithium Ion/Polymer | 10 | 3 | Surface Mount | 48-TQFP | I2C, SPI | 85 °C | -40 °C | ||||||||
Texas Instruments BQ7694202PFBR | 48-TQFP (7x7) | Over Current, Over Temperature, Over Voltage, Short Circuit | Multi-Function Controller | LiFePO4/Li-ion | 10 | 3 | Surface Mount | 48-TQFP | I2C | 85 °C | -40 °C | ||||||||
Texas Instruments BQ7694203PFBR | 48-TQFP (7x7) | Over Current, Over Temperature, Over Voltage, Short Circuit | Multi-Function Controller | LiFePO4/Li-ion | 10 | 3 | Surface Mount | 48-TQFP | SPI | 85 °C | -40 °C |
Description
General part information
BQ76942 Series
BQ76942 Battery Monitor Power Management Evaluation Board
