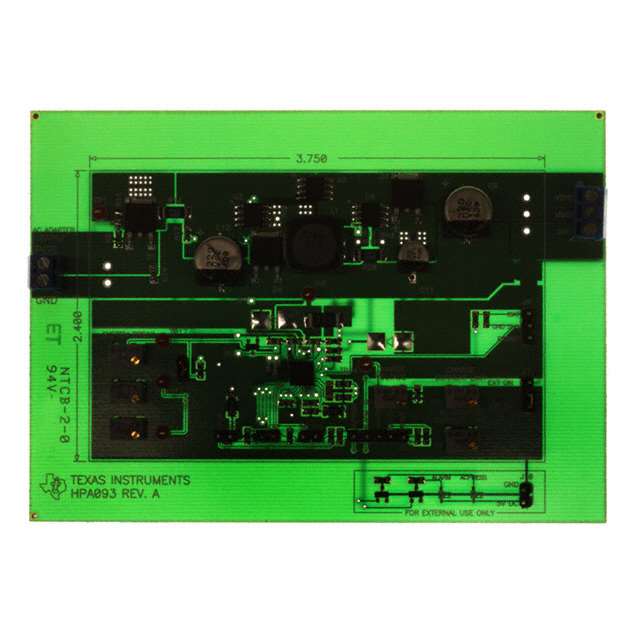

BQ24703EVM
ActiveEVALUATION MODULE FOR BQ24703
Deep-Dive with AI
Search across all available documentation for this part.
BQ24703EVM
ActiveEVALUATION MODULE FOR BQ24703
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24703EVM | BQ24703 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Contents | Board(s) | Board(s) |
| Embedded | False | False |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 " |
| Package / Case | - | 24-TSSOP, 28-VFQFN Exposed Pad |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-TSSOP, 28-VQFN (5x5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24703 | BQ24703 |
| Voltage - Supply (Max) | - | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ24703 Series
Host-Controlled Multi-Chemistry Battery Charger with system power selector
| Part | Battery Chemistry | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Supply (Max) [Max] | Package / Case [y] | Package / Case [y] | Package / Case | Function | Type | Embedded | Utilized IC / Part | Supplied Contents | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24703PW | Multi-Chemistry | 24-TSSOP | 85 °C | -40 °C | Surface Mount | 28 V | 4.4 mm | 0.173 " | 24-TSSOP | |||||||
Texas Instruments BQ24703RHDR | Multi-Chemistry | 28-VQFN (5x5) | 85 °C | -40 °C | Surface Mount | 28 V | 28-VFQFN Exposed Pad | |||||||||
Texas Instruments BQ24703PWR | Multi-Chemistry | 24-TSSOP | 85 °C | -40 °C | Surface Mount | 28 V | 4.4 mm | 0.173 " | 24-TSSOP | |||||||
Texas Instruments BQ24703EVM | Battery Charger | Power Management | BQ24703 | Board(s) | On-Board LEDs | Board(s) |
Description
General part information
BQ24703 Series
The bq24702/bq24703 is a highly integrated battery charge controller and selector tailored for notebook and sub-notebook PC applications.
The bq24702/bq24703 uses dynamic power management (DPM) to minimize battery charge time by maximizing use of available wall-adapter power. This is achieved by dynamically adjusting the battery charge current based on the total system (adapter) current.
The bq24702/bq24703 uses a fixed frequency, pulse width modulator (PWM) to accurately control battery charge current and voltage. Charge current limits can be programmed from a keyboard controller DAC or by external resistor dividers from the precision 5-V, ±0.6%, externally bypassed voltage reference (VREF), supplied by the bq24702/bq24703.
