BQ25185DLHR
Active1-CELL, 1-A STAND-ALONE LINEAR BATTERY CHARGER WITH POWER PATH AND SOLAR INPUT SUPPORT
Deep-Dive with AI
Search across all available documentation for this part.
BQ25185DLHR
Active1-CELL, 1-A STAND-ALONE LINEAR BATTERY CHARGER WITH POWER PATH AND SOLAR INPUT SUPPORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ25185DLHR |
|---|---|
| Battery Chemistry | Multi-Chemistry |
| Battery Pack Voltage | 4.35 V, 3.65 V, 4.1 V, 4.2 V, 3.6 V, 4.02 V, 4.4 V |
| Charge Current - Max [Max] | 1 A |
| Current - Charging | Constant - Programmable |
| Fault Protection | Over Temperature, Short Circuit, Over Current, Over-Under Voltage |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

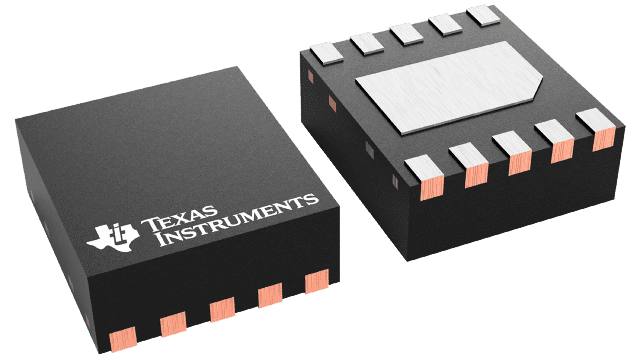

| Package / Case | 10-WFDFN Exposed Pad |
| Programmable Features | Current, Timer, Voltage |
| Supplier Device Package | 10-WSON |
| Voltage - Supply (Max) [Max] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | 1 | $ 1.80 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.20 | |||
| 100 | $ 1.07 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.94 | |||
| 3000 | $ 0.90 | |||
| 6000 | $ 0.88 | |||
| 9000 | $ 0.87 | |||
| Digikey | Cut Tape (CT) | 1 | $ 2.87 | |
| 10 | $ 1.86 | |||
| 25 | $ 1.60 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 2.87 | ||
| 10 | $ 1.86 | |||
| 25 | $ 1.60 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.99 | |||
| Tape & Reel (TR) | 3000 | $ 0.90 | ||
| 6000 | $ 0.85 | |||
| 9000 | $ 0.83 | |||
| LCSC | N/A | 1 | $ 1.43 | |
| 10 | $ 1.22 | |||
| 30 | $ 1.09 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.87 | |||
| Mouser Electronics | N/A | 1 | $ 1.80 | |
| 10 | $ 1.21 | |||
| 100 | $ 1.08 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.94 | |||
| 3000 | $ 0.90 | |||
| 9000 | $ 0.85 | |||
| Texas Instruments | LARGE T&R | 1 | $ 1.46 | |
| 100 | $ 1.20 | |||
| 250 | $ 0.86 | |||
| 1000 | $ 0.65 | |||
BQ25185 Series
1-cell, 1-A stand-alone linear battery charger with power path and solar input support
| Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Charge Current - Max [Max] | Current - Charging | Battery Pack Voltage | Number of Cells | Programmable Features | Voltage - Supply (Max) [Max] | Mounting Type | Package / Case | Battery Chemistry | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25185DLHR | 10-WSON | 125 ¯C | -40 °C | 1 A | Constant - Programmable | 3.6 V, 3.65 V, 4.02 V, 4.1 V, 4.2 V, 4.35 V, 4.4 V | 1 | Current, Timer, Voltage | 18 V | Surface Mount | 10-WFDFN Exposed Pad | Multi-Chemistry | Over Current, Over Temperature, Over-Under Voltage, Short Circuit |
Description
General part information
BQ25185 Series
The BQ25185 is a linear battery charger IC focusing on small solution size and low quiescent current for extending battery life. The device is available in a leadless, small package with a thermal pad giving thermal performance. The device can support up to 1-A charging and system loads of up to 3.125 A.
The battery is charged using a standard Li-ion or LiFePO4 charge profile with three phases: precharge, constant current and constant voltage. Thermal regulation provides the maximum charge current while managing the device temperature. The charger is also optimized for battery to battery charging with 3-V minimum input voltage operation and can withstand 25-V absolute maximum line transients. The device integrates a single push-button input to reduce the total solution footprint.
The BQ25185 is a linear battery charger IC focusing on small solution size and low quiescent current for extending battery life. The device is available in a leadless, small package with a thermal pad giving thermal performance. The device can support up to 1-A charging and system loads of up to 3.125 A.
