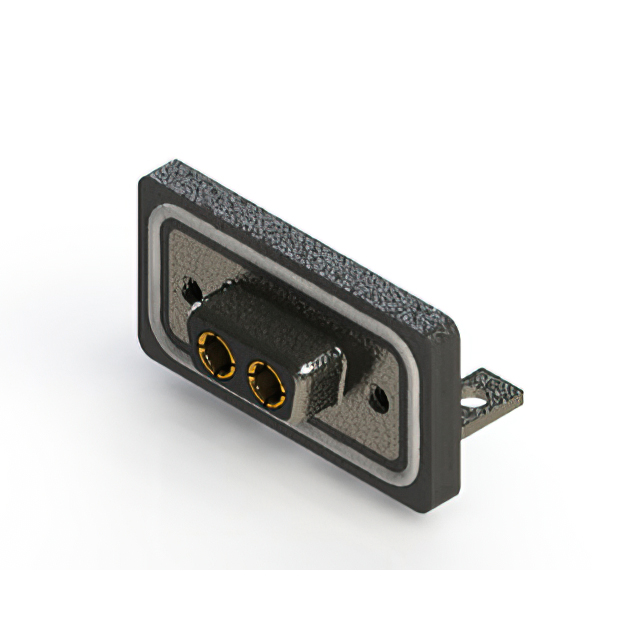

630W2W2-340-2N4

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W2W2-340-2N4

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W2W2-340-2N4

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

630W2W Series

...

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Shell Material, Finish	Contact Type	Connector Style	Contact Finish	Termination	Connector Type	Dielectric Material	Number of Positions	Contact Material	Number of Rows	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Ingress Protection	Material Flammability Rating	Features	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 630W2W2-640-3N4	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.76 Ám	30 Áin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Mounting Brackets Shielded	30 A
EDAC Inc. 630W2W2-640-2NA	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (M3)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.76 Ám	30 Áin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Shielded	20 A
EDAC Inc. 630W2W2-340-2N4	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.38 µm	15 µin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Mounting Brackets Shielded	20 A
EDAC Inc. 630W2WK2140-1NB	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (M3)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Female Sockets Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.127 µm	5 µin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Board Lock Mounting Brackets Shielded	10 A
EDAC Inc. 630W2W2-340-4NB	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (M3)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.38 µm	15 µin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Board Lock Mounting Brackets Shielded	40 A
EDAC Inc. 630W2WK2240-2N2	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Female Sockets Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC			1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Shielded	20 A	Flash
EDAC Inc. 630W2WK2140-3N3	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Female Sockets Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.127 µm	5 µin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Board Lock Mounting Brackets Shielded	30 A
EDAC Inc. 630W2W2-640-4N2	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.76 Ám	30 Áin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Shielded	40 A
EDAC Inc. 630W2WK2240-2N3	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Female Sockets Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC			1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Board Lock Mounting Brackets Shielded	20 A	Flash
EDAC Inc. 630W2W2-340-2N3	Panel Mount Right Angle Through Hole	-55 °C	125 °C	Black	Housing/Shell (4-40)	Nickel Plated Steel	Power	Combo D-Sub	Gold	Solder	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	1	125 VDC	0.38 µm	15 µin	1 (DE E) 2V2 2W2 2W2C 2WK2	IP67 - Dust Tight Waterproof	UL94 V-0	Board Lock Mounting Brackets Shielded	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 13.44

Description

General part information

630W2W Series

2 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
