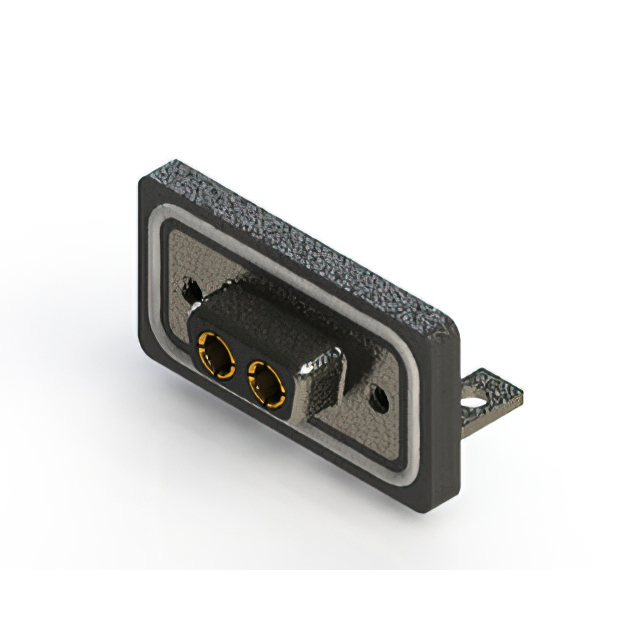

CONN D-SUB RCPT 2POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630W2W2-640-3N4
ActiveEDAC Inc.
CONN D-SUB RCPT 2POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630W2W2-640-3N4 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 30 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2WK2, 1 (DE, E), 2V2, 2W2C, 2W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630W2W Series
...
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Flange Feature | Shell Material, Finish | Contact Type | Connector Style | Contact Finish | Termination | Connector Type | Dielectric Material | Number of Positions | Contact Material | Number of Rows | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Ingress Protection | Material Flammability Rating | Features | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.76 Ám | 30 Áin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Mounting Brackets Shielded | 30 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (M3) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.76 Ám | 30 Áin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Shielded | 20 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.38 µm | 15 µin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Mounting Brackets Shielded | 20 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (M3) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Female Sockets Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.127 µm | 5 µin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Board Lock Mounting Brackets Shielded | 10 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (M3) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.38 µm | 15 µin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Board Lock Mounting Brackets Shielded | 40 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Female Sockets Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Shielded | 20 A | Flash | ||
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Female Sockets Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.127 µm | 5 µin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Board Lock Mounting Brackets Shielded | 30 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.76 Ám | 30 Áin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Shielded | 40 A | |
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Female Sockets Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Board Lock Mounting Brackets Shielded | 20 A | Flash | ||
EDAC Inc. | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | Black | Housing/Shell (4-40) | Nickel Plated Steel | Power | Combo D-Sub | Gold | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Copper Alloy | 1 | 125 VDC | 0.38 µm | 15 µin | 1 (DE E) 2V2 2W2 2W2C 2WK2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Board Lock Mounting Brackets Shielded | 20 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 15.61 | |
Description
General part information
630W2W Series
2 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
