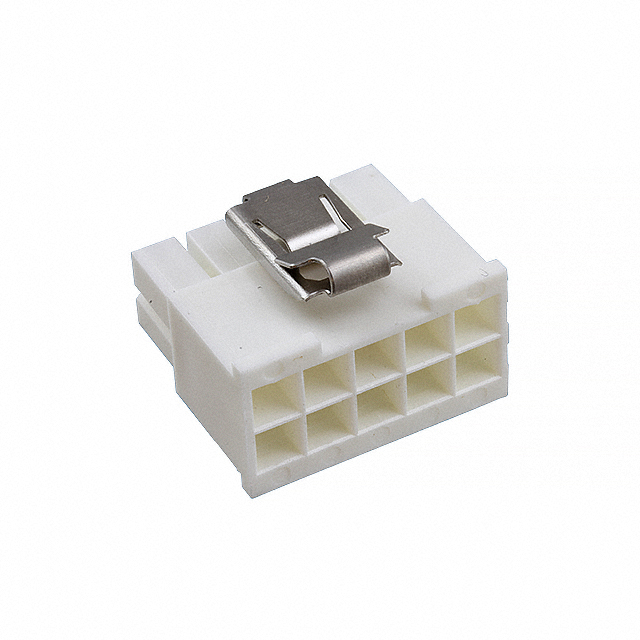

IPBD-05-D-K-M

Active

Samtec Inc.

CONN RCPT HSG 10POS 4.20MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT HSG 10POS 4.20MM

Technical Specifications

Parameters and characteristics for this part

Specification	IPBD-05-D-K-M

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Pick and Place, Polarizing Key
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Contact Termination	Note	Connector Type	Mounting Type	Fastening Type	Insulation Material	Features	Number of Positions	Row Spacing	Row Spacing
Samtec Inc. IPBD-05-S	4.2 mm	0.165 in	1	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)
Samtec Inc. IPBD-05-S-K	4.2 mm	0.165 in	1	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Polarizing Key
Samtec Inc. IPBD-05-D-K-M	4.2 mm	0.165 in	2	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Pick and Place Polarizing Key	10	4.2 mm	0.165 in
Samtec Inc. IPBD-05-S-M-K	4.2 mm	0.165 in	1	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Pick and Place Polarizing Key
