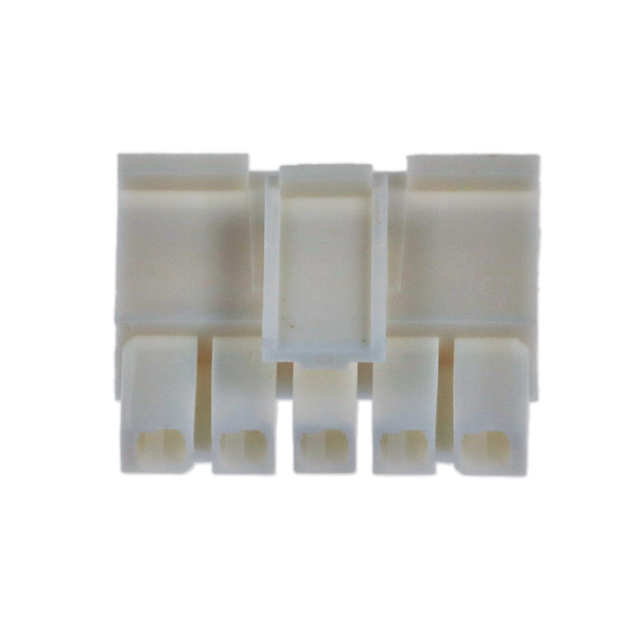

IPBD-05-S-K

Active

Samtec Inc.

CONN RCPT HSG 5POS 4.20MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT HSG 5POS 4.20MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Contact Termination	Note	Connector Type	Mounting Type	Fastening Type	Insulation Material	Features	Number of Positions	Row Spacing	Row Spacing
Samtec Inc. IPBD-05-S	4.2 mm	0.165 in	1	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)
Samtec Inc. IPBD-05-S-K	4.2 mm	0.165 in	1	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Polarizing Key
Samtec Inc. IPBD-05-D-K-M	4.2 mm	0.165 in	2	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Pick and Place Polarizing Key	10	4.2 mm	0.165 in
Samtec Inc. IPBD-05-S-M-K	4.2 mm	0.165 in	1	Female Socket	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Pick and Place Polarizing Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle 0.165" (4.20mm)
