EZ-1200-716MC-2
ActiveAmphenol Times Microwave Systems

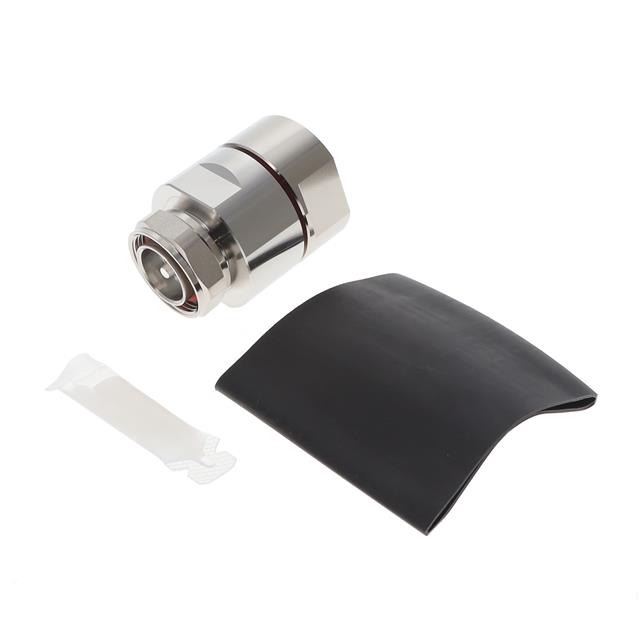

7/16 DIN MALE CLAMP CONNECTOR, P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ-1200-716MC-2
ActiveAmphenol Times Microwave Systems
7/16 DIN MALE CLAMP CONNECTOR, P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZ-1200-716MC-2 | EZ-1200 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze, Silver |
| Body Material | Brass | Brass |
| Cable Group | LMR-1200 | LMR-1200 |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Phosphor Bronze, Brass |
| Center Contact Plating | Gold | Gold, Silver |
| Connector Style | 7/16 DIN | 7/16 DIN, N Type, 7/8 EIA |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Push On | Push On, Press-Fit |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Push-Pull |
| Frequency - Max [Max] | 3 GHz | 2.5 - 6000 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.05 dB | 0.05 dB |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Flange |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle, Panel Mount |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 155 °C | 75 - 155 °C |
| Operating Temperature [Min] | -55 °C | -55 - -5 °C |
| Shield Termination | Clamp | Clamp |
| Voltage Rating | - | 1000 - 5000 V |
EZ-1200 Series
7/16 DIN MALE CLAMP CONNECTOR, P
| Part | Mounting Type | Housing Color | Connector Type | Shield Termination | Dielectric Material | Number of Ports | Contact Termination | Cable Group | Frequency - Max [Max] | Center Contact Material | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Insertion Loss | Ingress Protection | Connector Style | Impedance | Mating Cycles | Voltage Rating | Mounting Feature | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems EZ-1200-716MC-2 | Free Hanging (In-Line) | Silver | Male Pin, Plug | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Push On | LMR-1200 | 3 GHz | Beryllium Copper | White Bronze | Gold | 155 °C | -55 °C | Brass | 0.05 dB | IP67 - Dust Tight, Waterproof | 7/16 DIN | 50 Ohms | ||||
Amphenol Times Microwave Systems EZ-1200-716FC-2 | Free Hanging (In-Line) | Silver | Female Socket, Jack | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Push On | LMR-1200 | 3 GHz | Beryllium Copper | White Bronze | Gold | 155 °C | -55 °C | Brass | 0.05 dB | IP67 - Dust Tight, Waterproof | 7/16 DIN | 50 Ohms | ||||
Amphenol Times Microwave Systems EZ-1200-NFC-2 | Free Hanging (In-Line) | Silver | Female Socket, Jack | Clamp | 1 | Push On | LMR-1200 | 2.5 GHz | White Bronze | 85 °C | -40 °C | N Type | 50 Ohms | ||||||||||
Amphenol Times Microwave Systems EZ-1200-NMC-PL-2 | Free Hanging (In-Line) | Silver | Male Pin, Plug | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Press-Fit | LMR-1200 | 6000 MHz | Phosphor Bronze | White Bronze | Silver | 85 °C | -55 °C | Brass | N Type | 50 Ohms | 500 | 5000 V | ||||
Amphenol Times Microwave Systems EZ-1200-NMC-2 | Free Hanging (In-Line) | Silver | Male Pin, Plug | Clamp | 1 | Push On | LMR-1200 | 2.5 GHz | White Bronze | 85 °C | -40 °C | N Type | 50 Ohms | ||||||||||
Amphenol Times Microwave Systems EZ-1200-78EIA-RA-2 | Panel Mount, Right Angle | Silver | Male Pin, Plug | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Push On | LMR-1200 | 500 MHz | Brass | White Bronze | Silver | 85 °C | -40 °C | Brass | 0.05 dB | IP67 - Dust Tight, Waterproof | 7/8 EIA | 50 Ohms | 500 | Flange | Push-Pull | |
Amphenol Times Microwave Systems EZ-1200-78EIA-2 | Silver | Male Pin, Plug | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Push On | LMR-1200 | 500 MHz | Brass | White Bronze | Silver | 155 °C | -55 °C | Brass | 0.05 dB | IP67 - Dust Tight, Waterproof | 7/8 EIA | 50 Ohms | Flange | Push-Pull | |||
Amphenol Times Microwave Systems EZ-1200-NFC-PL-2 | Free Hanging (In-Line) | Silver | Male Pin, Plug | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Press-Fit | LMR-1200 | 3 GHz | Brass | Silver | Silver | Brass | N Type | 50 Ohms | 1000 VDC | |||||||
Amphenol Times Microwave Systems EZ-1200-NFC-PL | Free Hanging (In-Line) | Silver | Male Pin, Plug | Clamp | Polytetrafluoroethylene (PTFE) | 1 | Press-Fit | LMR-1200 | 3 GHz | Brass | Silver | Silver | 75 ░C | -5 °C | Brass | N Type | 50 Ohms | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 213.54 | |
| 10 | $ 197.88 | |||
| 25 | $ 190.76 | |||
| 50 | $ 189.34 | |||
Description
General part information
EZ-1200 Series
7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
