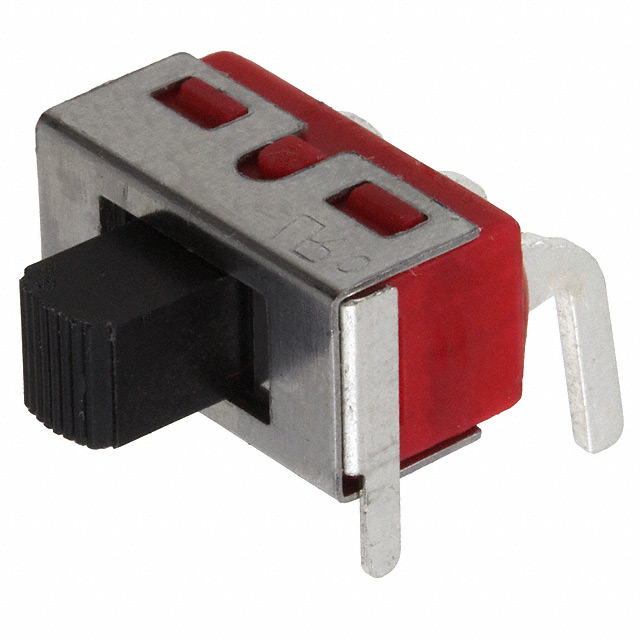

500SSP3S1M6QEA

Active

E-Switch

SWITCH SLIDE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

500SSP3S1M6QEA

Active

E-Switch

SWITCH SLIDE SPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	500SSP3S1M6QEA

Actuator Length [x]	4.72 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Switch Travel [custom]	2.16 mm
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

500SSP3 Series

Part	Current Rating (Amps)	Switch Function	Actuator Material	Contact Finish	Electrical Life	Actuator Length [x]	Features	Voltage Rating - DC	Switch Travel [custom]	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Voltage Rating - AC	Contact Timing	Contact Material	Termination Style	Mounting Type	Actuator Type
E-Switch 500SSP3S2M2QEA	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	7.24 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	PC Pin	Through Hole	Standard
E-Switch 500SSP3S3M1QEB	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	9.4 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	Solder Lug		Standard
E-Switch 500SSP3S1M2REB	0.4 VA	On-Off-On	Nylon Polyamide (PA)	Gold	30000 Cycles	5.08 mm	Epoxy Sealed Terminals	20 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	20 V	Not Specified	Copper Alloy	PC Pin		Standard
E-Switch 500SSP3S2M1QEB	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	7.24 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	Solder Lug		Standard
E-Switch 500SSP3S2M1QEA	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	7.24 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	Solder Lug		Standard
E-Switch 500SSP3S3M1QEA	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	9.4 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	Solder Lug		Standard
E-Switch 500SSP3S2M7QEA	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	6.88 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	PC Pin	Right Angle Through Hole Vertical	Standard
E-Switch 500SSP3S1M7QEA	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	4.72 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	PC Pin	Right Angle Through Hole Vertical	Standard
E-Switch 500SSP3S1M7REA	0.4 VA	On-Off-On	Nylon Polyamide (PA)	Gold	30000 Cycles	4.72 mm	Epoxy Sealed Terminals	20 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	20 V	Not Specified	Copper Alloy	PC Pin	Right Angle Through Hole Vertical	Standard
E-Switch 500SSP3S1M6QEA	5 A	On-Off-On	Nylon Polyamide (PA)	Silver	30000 Cycles	4.72 mm	Epoxy Sealed Terminals	28 V	2.16 mm	30000 Steps	-30 ░C	85 °C	SPDT	120 V	Not Specified	Copper Alloy	PC Pin	Through Hole Right Angle	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.89
		10	$ 3.73
		25	$ 3.40
		100	$ 2.95
		250	$ 2.67
		500	$ 2.48
		1000	$ 2.30
		2500	$ 2.09

Description

General part information

500SSP3 Series

Slide Switch SPDT Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
