TPS61170EVM-280
ActiveTexas Instruments

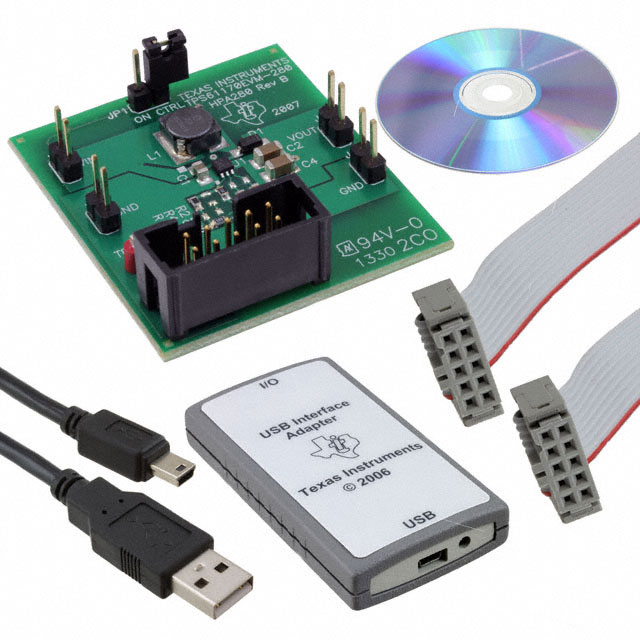

TPS61170 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP EVALUATION BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS61170EVM-280
ActiveTexas Instruments
TPS61170 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP EVALUATION BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS61170EVM-280 | TPS61170 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 550 mA | 420 - 960 mA |
| Frequency - Switching | 1.2 MHz | 1.2 MHz |
| Function | - | Step-Up, Step-Up/Step-Down |
| Grade | - | Automotive |
| Main Purpose | DC/DC, Step Up | DC/DC, Step Up, DC/DC, Step Up or Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 - 125 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Qualification | - | AEC-Q100 |
| Regulator Topology | Boost | Boost, Buck-Boost |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 6-WSON (2x2) |
| Synchronous Rectifier | - | False |
| Topology | - | Buck-Boost, SEPIC, Flyback, Boost |
| Utilized IC / Part | TPS61170 | TPS61170 |
| Voltage - Input (Max) | - | 18 V |
| Voltage - Input (Min) | - | 3 V |
| Voltage - Input [Max] | 18 V | 15 - 18 V |
| Voltage - Input [Min] | 9 VDC | 9 VDC |
| Voltage - Output | 24 V | 12 - 24 V |
| Voltage - Output (Max) | - | 38 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 58.80 | |
TPS61170 Series
1.2A SWITCH, 38V HIGH VOLTAGE BOOST CONVERTER IN 2X2MM QFN PACKAGE
| Part | Voltage - Input (Min) [Min] | Function | Mounting Type | Synchronous Rectifier | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) | Topology | Frequency - Switching | Voltage - Input (Max) [Max] | Output Configuration | Current - Output | Number of Outputs | Output Type | Supplier Device Package | Qualification | Grade | Supplied Contents | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Utilized IC / Part | Voltage - Output | Main Purpose | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS61170DRVT | 3 V | Step-Up, Step-Up/Step-Down | Surface Mount | 85 °C | -40 °C | 38 V | Boost, Buck-Boost, Flyback, SEPIC | 1.2 MHz | 18 V | Positive | 960 mA | 1 | Adjustable | 6-WSON (2x2) | |||||||||||||
Texas Instruments TPS61170QDRVRQ1 | 3 V | Step-Up, Step-Up/Step-Down | Surface Mount | 125 °C | -40 °C | 38 V | Boost, Buck-Boost, Flyback, SEPIC | 1.2 MHz | 18 V | Positive | 960 mA | 1 | Adjustable | 6-WSON (2x2) | AEC-Q100 | Automotive | |||||||||||
Texas Instruments TPS61170EVM-280 | 1.2 MHz | 550 mA | Board(s) | Non-Isolated | 1 | 9 VDC | 18 V | Boost | TPS61170 | 24 V | DC/DC, Step Up | Fully Populated | |||||||||||||||
Texas Instruments TPS61170DRVRG4 | 3 V | Step-Up, Step-Up/Step-Down | Surface Mount | 85 °C | -40 °C | 38 V | Boost, Buck-Boost, Flyback, SEPIC | 1.2 MHz | 18 V | Positive | 960 mA | 1 | Adjustable | 6-WSON (2x2) | |||||||||||||
Texas Instruments TPS61170EVM-316 | 1.2 MHz | 420 mA | Board(s) | Non-Isolated | 1 | 9 VDC | 15 V | Buck-Boost | TPS61170 | 12 V | DC/DC, Step Up or Down | Fully Populated |
Description
General part information
TPS61170 Series
TPS61170 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
