12-823-90C
ActiveAries Electronics
CONN IC DIP SOCKET 12POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12-823-90C
ActiveAries Electronics
CONN IC DIP SOCKET 12POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12-823-90C |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Current Rating (Amps) | 3 A |
| Features | Closed Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 6, 2, 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.56 mm |
| Termination Post Length | 0.14 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.32 | |
| 10 | $ 8.38 | |||
| 25 | $ 7.90 | |||
| 50 | $ 7.70 | |||
| 100 | $ 7.49 | |||
| 250 | $ 6.68 | |||
| 500 | $ 6.28 | |||
| 1000 | $ 5.55 | |||
Description
General part information
12-823 Series

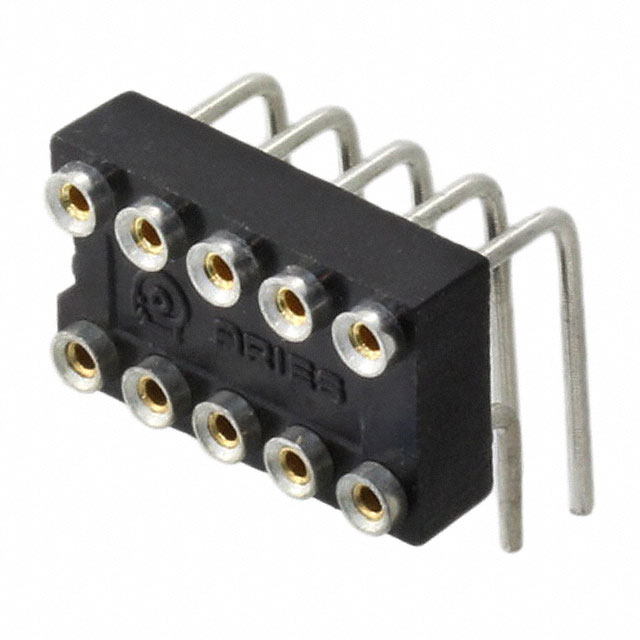

12 (2 x 6) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
