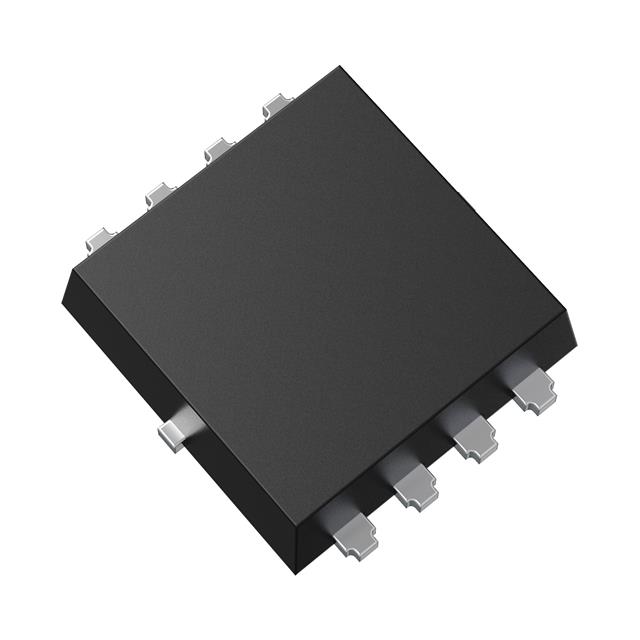

XPN3R804NC,L1XHQ

Active

Toshiba Semiconductor and Storage

MOSFET N-CH 40V 40A 8TSON

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

MOSFET N-CH 40V 40A 8TSON

Technical Specifications

Parameters and characteristics for this part

Specification	XPN3R804NC,L1XHQ

Current - Continuous Drain (Id) @ 25°C	40 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	35 nC
Input Capacitance (Ciss) (Max) @ Vds	2230 pF
Mounting Type	Surface Mount
Operating Temperature	175 °C
Package / Case	8-PowerVDFN
Power Dissipation (Max)	840 mW, 100 W
Rds On (Max) @ Id, Vgs	3.8 mOhm
Supplier Device Package	8-TSON Advance-WF
Supplier Device Package [x]	3.1
Supplier Device Package [y]	3.1
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

Part	Input Capacitance (Ciss) (Max) @ Vds	Technology	Package / Case	Mounting Type	Operating Temperature	FET Type	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Drain to Source Voltage (Vdss)
Toshiba Semiconductor and Storage XPN3R804NC,L1XHQ	2230 pF	MOSFET (Metal Oxide)	8-PowerVDFN	Surface Mount	175 °C	N-Channel	3.8 mOhm	100 W 840 mW	35 nC	4.5 V 10 V	20 V	2.5 V	40 A	3.1	8-TSON Advance-WF	3.1	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 40 V 40A (Ta) 840mW (Ta), 100W (Tc) Surface Mount 8-TSON Advance-WF (3.1x3.1)
