5151061802F
ActiveDIALIGHT

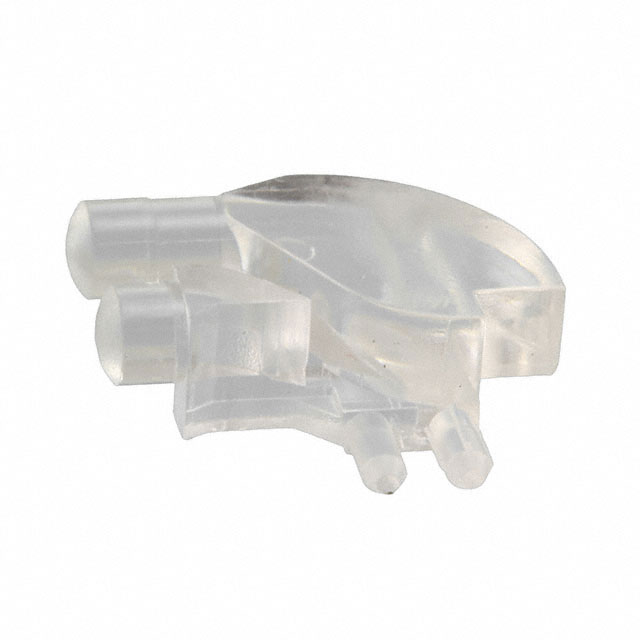

LIGHT PIPE 1X2 3MM ROUND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5151061802F
ActiveDIALIGHT
LIGHT PIPE 1X2 3MM ROUND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5151061802F | 5151061 Series |
|---|---|---|
| Color | Clear, Diffused | Clear, Diffused |
| Configuration | 2 High | 2 High |
| Configuration | - | 2 |
| Configuration | - | 2 |
| Lens Size | 3 mm | 3 - 4.3 mm |
| Lens Style | - | Round with Domed Top |
| Mounting Type | Board Mount, Right Angle, Press Fit | Board Mount, Right Angle, Press Fit |
| Type | Rigid | Rigid |
5151061 Series
LIGHT PIPE RIDGID 3MM DIA
| Part | Color | Type | Lens Style | Mounting Type | Lens Size | Configuration | Configuration [y] | Configuration [z] |
|---|---|---|---|---|---|---|---|---|
DIALIGHT 5151061801F | Clear, Diffused | Rigid | Round with Domed Top | Board Mount, Press Fit, Right Angle | 3 mm | 2 High | ||
DIALIGHT 5151061802F | Clear, Diffused | Rigid | Board Mount, Press Fit, Right Angle | 3 mm | 2 High | |||
DIALIGHT 5151061803F | Clear, Diffused | Rigid | Board Mount, Press Fit, Right Angle | 3 mm | 2 | 2 | ||
DIALIGHT 5151061F | Clear | Rigid | Board Mount, Press Fit, Right Angle | 4.3 mm | 2 High |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| 2000 | $ 0.40 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.36 | |||
| 25000 | $ 0.34 | |||
Description
General part information
5151061 Series
Light Pipe 2 High Clear, Diffused Rigid Board Mount, Press Fit, Right Angle
