LMR-195
ActiveAmphenol Times Microwave Systems

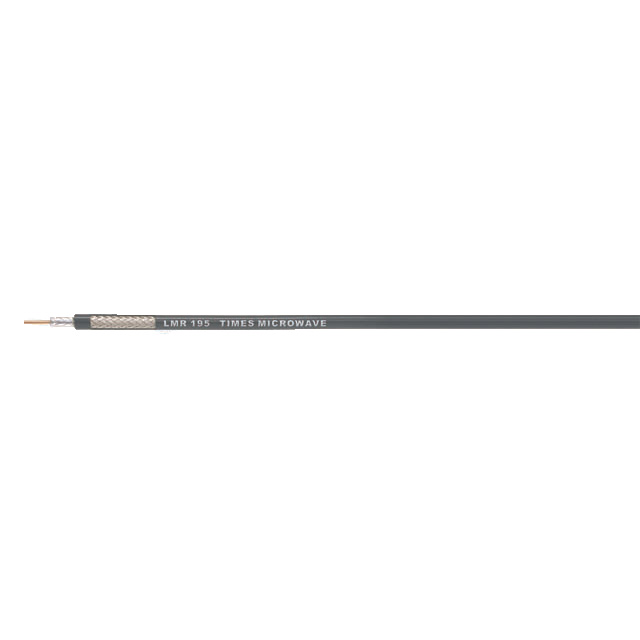

CABLE LMR-195 BLACK PE 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LMR-195
ActiveAmphenol Times Microwave Systems
CABLE LMR-195 BLACK PE 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LMR-195 | LMR-195 Series |
|---|---|---|
| Cable Type | Coaxial | Coaxial, Coaxial - Riser, Coaxial - Plenum |
| Conductor Material | Copper, Bare | Copper, Bare |
| Conductor Strand | Solid | Solid |
| Dielectric Diameter | - | 2.87 mm |
| Dielectric Diameter | - | 0.113 " |
| Dielectric Diameter [diameter] | 2.79 mm | 2.79 mm |
| Dielectric Diameter [diameter] | 0.11 in | 0.11 in |
| Dielectric Material | Foam Polyethylene (FPE) | Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE) |
| Features | - | Fire Retardant, Direct Burial, Watertight |
| Impedance | 50 Ohms | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.195 in | 0.175 - 0.195 in |
| Jacket (Insulation) Diameter [diameter] | 4.95 mm | 4.45 - 4.95 mm |
| Jacket (Insulation) Material | Polyethylene (PE) | Thermoplastic Elastomer (TPE), Polyethylene (PE), Riser, Poly-Vinyl Chloride (PVC), Poly-Vinyl Chloride (PVC), Riser, Polyethylene (PE), Fluoropolymer, Plenum, Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Black | Black, Red |
| Length | 15.24 m | 15.24 m |
| Length | 50 ft | 50 ft |
| Length | - | Enter Number of Feet in Order Quantity |
| Length [x] | 100 ft, 10 ft | 1 - 100 ft |
| Length [x] | 30.48 m, 3.05 m | 3.05 - 300 mm |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shield Material | Copper, Tinned, Aluminum | Copper, Tinned, Aluminum |
| Shield Type | Braid | Foil, Braid |
| Spool Size | - | 500 ' |
| Spool Size | - | 152.4 m |
| Usage | - | Antenna |
| VoP, Velocity of Propagation | 75 | 74 - 80 |
LMR-195 Series
LMR-195 W/STRAND CTR CONDUC FOOT
| Part | Impedance | Length | Dielectric Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | VoP, Velocity of Propagation | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Material | Spool Size | Spool Size | Conductor Material | Cable Type | Shield Material | Features | Conductor Strand | Usage | Dielectric Diameter | Dielectric Diameter | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems LMR-195-UF | 50 Ohms | Enter Number of Feet in Order Quantity | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 74 | Braid, Foil | 85 °C | -40 °C | 2.79 mm | 0.11 in | Thermoplastic Elastomer (TPE) | 500 ' | 152.4 m | Copper, Bare | Coaxial | Aluminum, Copper, Tinned | |||||||||
Amphenol Times Microwave Systems LMR-195-FR-W | 50 Ohms | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Polyethylene (PE), Riser | Copper, Bare | Coaxial - Riser | Aluminum, Copper, Tinned | Fire Retardant | Solid | |||||||||||
Amphenol Times Microwave Systems LMR-195-MA | 50 Ohms | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Poly-Vinyl Chloride (PVC) | Copper, Bare | Coaxial | Aluminum, Copper, Tinned | Solid | Antenna | ||||||||||
Amphenol Times Microwave Systems LMR-195-FR-PVC | 50 Ohms | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Poly-Vinyl Chloride (PVC), Riser | Copper, Bare | Coaxial - Riser | Aluminum, Copper, Tinned | Fire Retardant | Solid | ||||||||||
Amphenol Times Microwave Systems LMR-195-DB | 50 Ohms | Enter Number of Feet in Order Quantity | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Polyethylene (PE) | 500 ' | 152.4 m | Copper, Bare | Coaxial | Aluminum, Copper, Tinned | Direct Burial, Watertight | Solid | |||||||
Amphenol Times Microwave Systems LMR-195-PVC-W | 50 Ohms | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Poly-Vinyl Chloride (PVC) | Copper, Bare | Coaxial | Aluminum, Copper, Tinned | Solid | ||||||||||||
Amphenol Times Microwave Systems LMR-195-PVC | 50 Ohms | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Poly-Vinyl Chloride (PVC) | Copper, Bare | Coaxial | Aluminum, Copper, Tinned | Solid | |||||||||||
Amphenol Times Microwave Systems LMR-195-LLPX | 50 Ohms | Polytetrafluoroethylene (PTFE) | 0.175 in | 4.45 mm | Red | 76 | Braid, Foil | 125 °C | -40 °C | Fluoropolymer, Plenum | Copper, Bare | Coaxial - Plenum | Aluminum, Copper, Tinned | Solid | 2.87 mm | 0.113 " | |||||||||||
Amphenol Times Microwave Systems LMR-195-FR | 50 Ohms | Enter Number of Feet in Order Quantity | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 80 | Braid | 85 °C | -40 °C | 2.79 mm | 0.11 in | Polyethylene (PE), Riser | 500 ' | 152.4 m | Copper, Bare | Coaxial - Riser | Aluminum, Copper, Tinned | Fire Retardant | Solid | |||||||
Amphenol Times Microwave Systems LMR-195-LSZH | 50 Ohms | Foam Polyethylene (FPE) | 0.195 in | 4.95 mm | Black | 76 | Braid | 85 °C | -40 °C | Low Smoke Zero Halogen (LSZH), Polyethylene (PE) | Copper, Bare | Coaxial | Aluminum, Copper, Tinned | Solid | 2.87 mm | 0.113 " | 1 ft | 300 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 58.76 | |
| 5 | $ 48.08 | |||
| 10 | $ 37.39 | |||
| 25 | $ 32.05 | |||
| 50 | $ 29.91 | |||
| 100 | $ 27.78 | |||
Description
General part information
LMR-195 Series
Coaxial Cable 100.0' (30.48m) 50 Ohms
