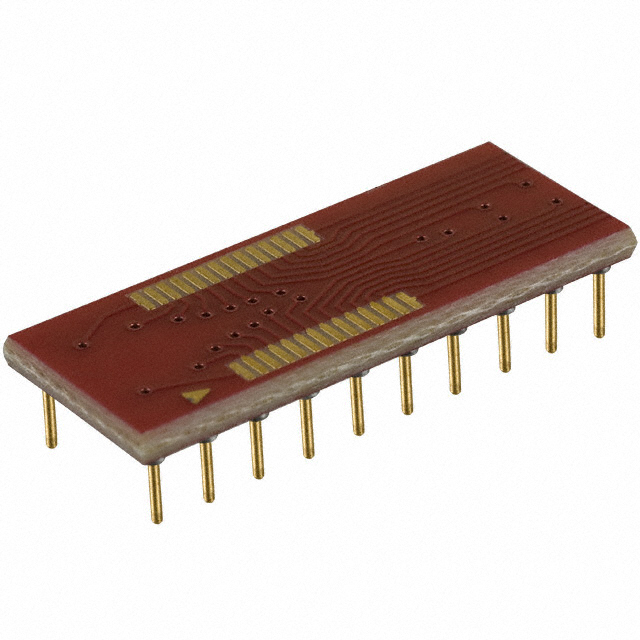

20-351000-11-RC

Active

Aries Electronics

SOCKET ADAPTER SSOP TO 20DIP 0.3

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SSOP TO 20DIP 0.3

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Post	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Pitch - Mating	Pitch - Mating	Board Material	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Convert From (Adapter End)	Contact Material - Post [custom]	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Number of Positions	Proto Board Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Pitch [x]	Pitch [x]	Package Accepted	Board Thickness	Board Thickness	Board Thickness
Aries Electronics 20-351000-10	Tin-Lead	0.3 in	DIP	7.62 mm	0.65 mm	0.026 in	FR4 Epoxy Glass	Solder	200 µin	5.08 µm	Through Hole	SSOP	Brass	2.54 mm	0.1 in	3.18 mm	0.125 in
Aries Electronics 20-351000-11-RC																		20	SMD to DIP	10.16 mm	0.4 in	50.8 mm	2 in	0.026 in	0.65 mm	SSOP	0.062 in	0.0625 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
