1SNK806717R0000

Active

TE Connectivity Raychem Cable Protection

AUT SNK PLUGGABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1SNK806717R0000

Active

TE Connectivity Raychem Cable Protection

AUT SNK PLUGGABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1SNK806717R0000

Color	Gray
Current - IEC	30 A
Current - UL	30 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	36.32 mm
Insulation Height	1.43 in
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Positions Per Level	4
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - IEC	1 kV
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²
Wire Strip Length	12.5 mm

ENTRELEC SNK Series

...

Part	Color	Type	For Use With/Related Products	Number of Positions	Pitch [x]	Pitch [x]	Legend	Current - IEC	Current - UL	Voltage - IEC	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Voltage - UL [custom]	Termination Style	Stripping Length	Disconnect Type	Material Flammability Rating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Material - Insulation	Legend [Min]	Legend [Max]	Mounting Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Strip Length	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Housing Material	Voltage - UL
TE Connectivity Raychem Cable Protection 1SNK900403R0000	Gray	Component Plug	SNK ZDP ZK ZP ZS Series	1
TE Connectivity Raychem Cable Protection 1SNK156011R0000	White	Label Snap In	SNK Series		0.236 in	6 mm	Letters A
TE Connectivity Raychem Cable Protection 1SNK705311R0000	Gray	Disconnect		2				17 A	18 A	630 V	1	0.2 mm²	4 mm²	5.2 mm	300 V	Push In Spring	11 mm	Open	UL94 V-0	12 AWG	26 AWG	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1SNK506260R0000	Yellow	Feed Through		4				40 A	30 A	800 V	2	0.2 mm²	6 mm²	6 mm	300 V	Screw	10 mm		UL94 V-0	10 AWG	24 AWG	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1SNK157041R0000	White	Label Snap In	SNK Series		0.236 in	6 mm	Numbers 4
TE Connectivity Raychem Cable Protection 1SNK156122R0000	White	Label Snap In	SNK Series		0.236 in	6 mm	Letters L
TE Connectivity Raychem Cable Protection 1SNK160121R0000	White	Label Snap In	SNK Series																				111	120
TE Connectivity Raychem Cable Protection 1SNK166191R0000	White	Label Snap In	SNK Series				Letters S
TE Connectivity Raychem Cable Protection 1SNK806724R0000	Gray	Plug Female Sockets		11				30 A	30 A	1 kV	1					Screwless - Spring Cage Tension Clamp				10 AWG	26 AWG				Free Hanging (In-Line)	6 mm˛	0.5 mm˛	12.5 mm	36.32 mm	1.43 in	-55 °C	110 °C	11	Polyamide (PA) Nylon
TE Connectivity Raychem Cable Protection 1SNK506020R0000	Blue	Feed Through		2				41 A	30 A	1 kV	1	0.2 mm²	6 mm²	6 mm		Screw	10.5 mm		UL94 V-0	10 AWG	24 AWG	Nylon Polyamide (PA)													600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.00
		10	$ 6.85
		25	$ 6.54
		50	$ 6.13

Description

General part information

ENTRELEC SNK Series

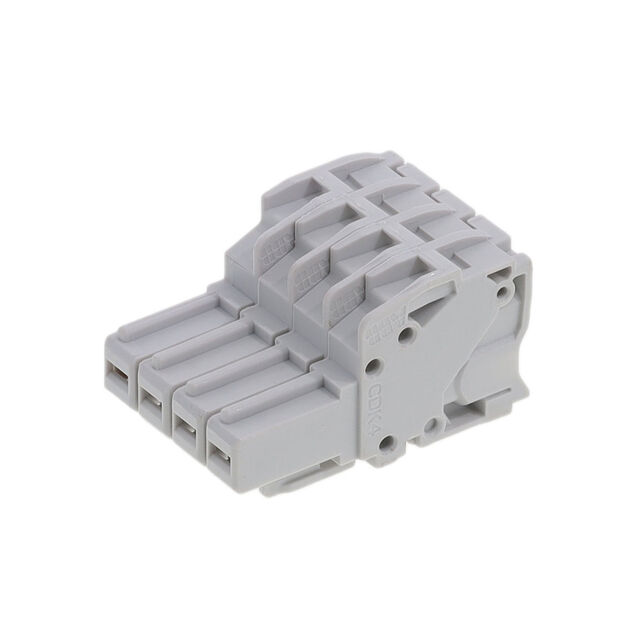

4 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
