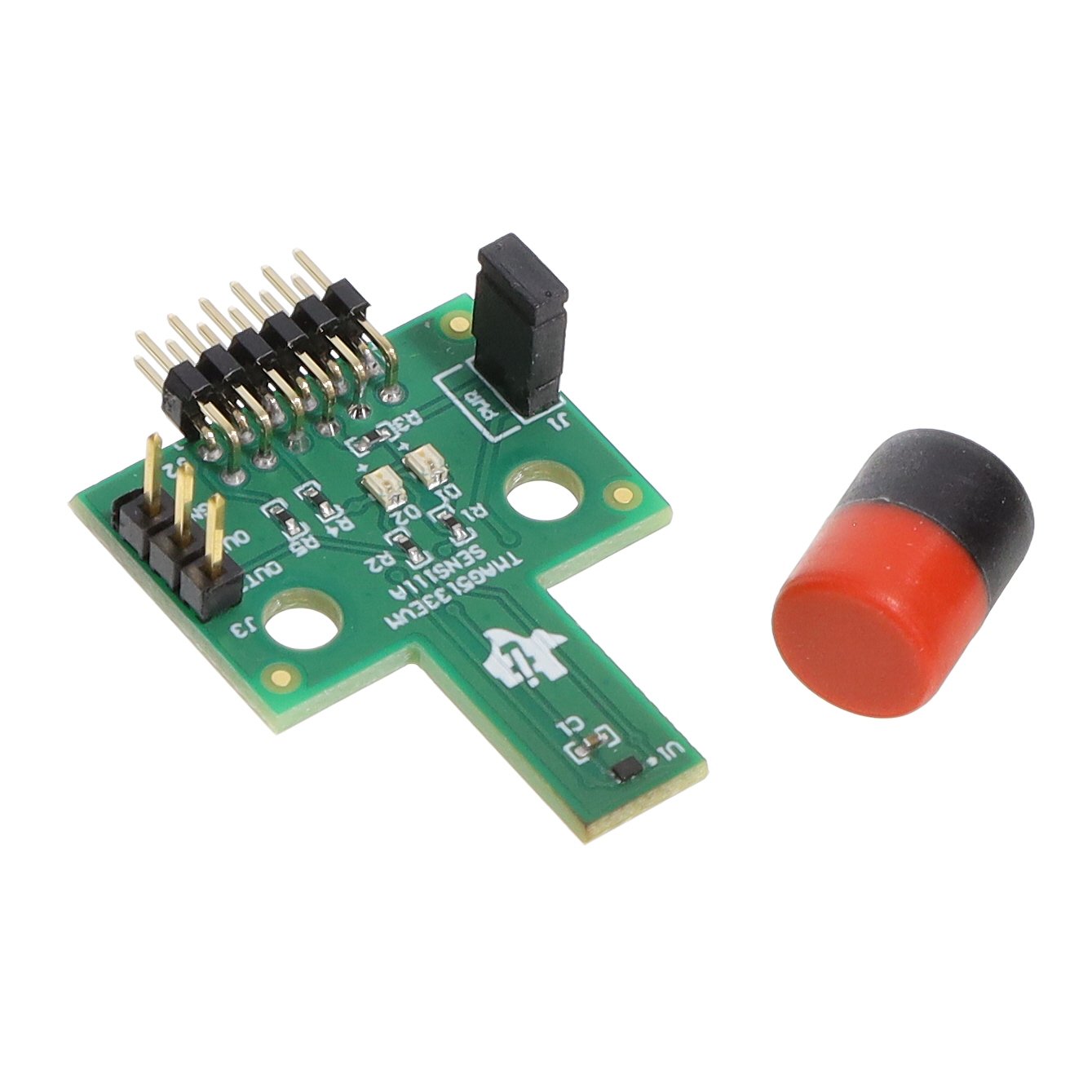

TMAG5133EVM
ActiveTexas Instruments
MAGNETIC SENSOR DEVELOPMENT TOOLS TMAG5133 EVALUATION MODULE
TMAG5133EVM
ActiveTexas Instruments
MAGNETIC SENSOR DEVELOPMENT TOOLS TMAG5133 EVALUATION MODULE
Description
General part information
TMAG5133 Series
MAGNETIC SENSOR DEVELOPMENT TOOLS TMAG5133 EVALUATION MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | TMAG5133EVM |
|---|---|
| Contents | Board |
| Embedded | No |
| Interface | Digital |
| Sensing Range (Option 1) Maximum | 2.2 mT |
| Sensing Range (Option 1) Minimum | -2.2 mT |
| Sensing Range (Option 2) Maximum | 3 mT |
| Sensing Range (Option 2) Minimum | -3 mT |
| Sensor Type | Hall Effect |
| Utilized IC / Part | TMAG5133 |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
