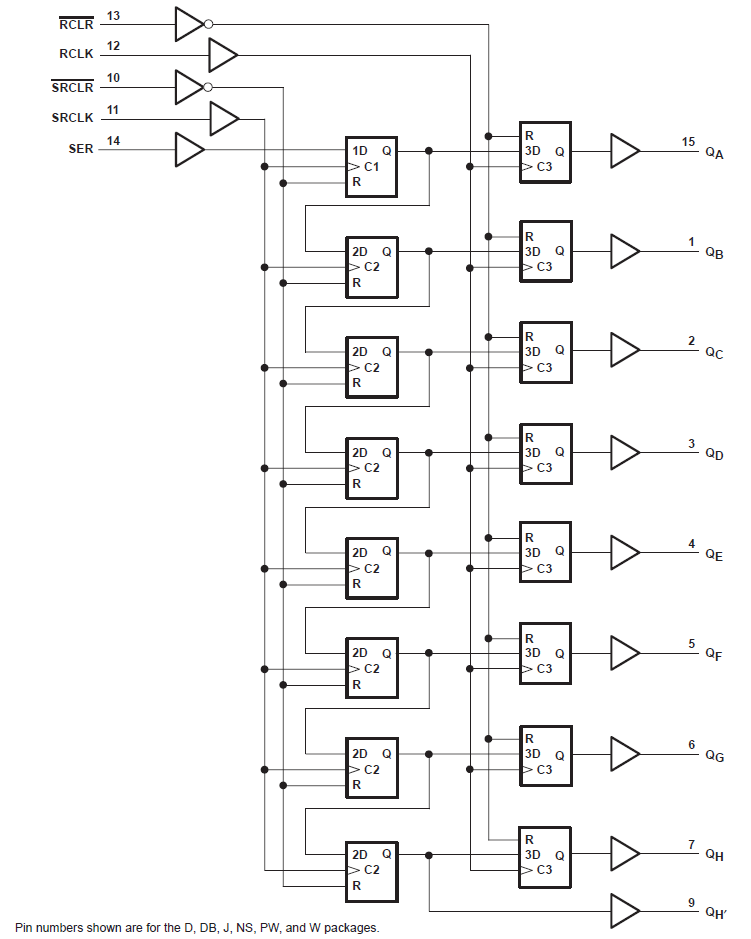

74LV594 Series

Catalog

SHIFT REGISTER SINGLE 8-BIT SERIAL TO SERIAL/PARALLEL 16-PIN SOP T/R

Part	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Logic Type	Function	Package Name	Package Length	Package Width	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	Number of Bits per Element	Number of Elements
Texas Instruments SN74LV594ANSR	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-SO 16-SOIC	0.209 in	5.3 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594ADG4	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-SOIC	0.154 in	3.9 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594APWRE4	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-TSSOP	0.173 in	4.4 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594APWG4	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-TSSOP	0.173 in	4.4 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594ADB
Texas Instruments SN74LV594APWTG4	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-TSSOP	0.173 in	4.4 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594ADE4	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-SOIC	0.154 in	3.9 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594ADBR	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-SSOP	0.209 in	5.3 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594APWR	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-TSSOP	0.173 in	4.4 mm	-40 °C	85 °C	Push-Pull	8 bits	1
Texas Instruments SN74LV594ADRG4	Surface Mount	5.5 V	2 V	Shift Register	Serial to Parallel	16-SOIC	0.154 in	3.9 mm	-40 °C	85 °C	Push-Pull	8 bits	1
