TPS22986 Series
Manufacturer: Texas Instruments
Beta
⌘K

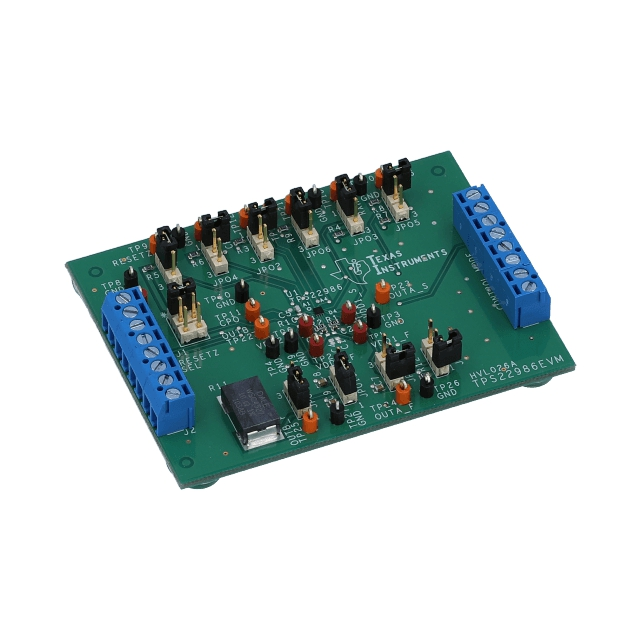

POWER MANAGEMENT IC DEVELOPMENT TOOLS TPS22986EVM
| Part | Supplied Contents | Type | Contents | Function | Utilized IC / Part | Voltage - Load (Max) | Voltage - Load (Min) | Rds On (Typ) Variant 2 | Rds On (Typ) Variant 1 | Package / Case | Fault Protection | Package Name | Package Width | Package Length | Input Ratio | Output Ratio | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Number of Outputs | Switch Type | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Power Management | Board | Power Distribution Switch (Load Switch) | TPS22986 | |||||||||||||||||
Texas Instruments | 19.8 V | 2.8 V | 120 mOhm | 1 Ohm | 16-XFBGA DSBGA | Reverse Current | 16-DSBGA | 1.6 mm | 1.6 mm | 1 | 2 | 85 °C | -40 °C | Surface Mount | 2 | General Purpose | High Side |
