DAC8871 Series

16-Bit Single Channel, Serial Interface, +/-18V (High Voltage Bipolar) Output DAC

Catalog

16-Bit Single Channel, Serial Interface, +/-18V (High Voltage Bipolar) Output DAC

Part	Data Interface	Reference Type	Settling Time (Typical)	Mounting Type	Package Length	Package Name	Package Width	Output Type	Operating Temperature (Min)	Operating Temperature (Max)	Architecture	DNL (LSB) Tolerance	INL (LSB) Tolerance	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog (Nominal Positive)	Voltage - Supply, Analog (Maximum)	Voltage - Supply, Analog (Nominal Negative)	Number of D/A Converters	Differential Output	Number of Bits	Settling Time	Supplied Contents	DAC Type	Contents	Number of DAC's	Utilized IC / Part
Texas Instruments DAC8871SPWG4	SPI	External	1 µs	Surface Mount	0.173 in	16-TSSOP	4.4 mm	Voltage - Unbuffered	-40 °C	105 °C	R-2R	0.25 LSB	1 LSB	2.7 V	5.5 V	13.5 V	19.8 V	-13.5 V	1 count	No	16 bits
Texas Instruments DAC8871SBPWG4	SPI	External	1 µs	Surface Mount	0.173 in	16-TSSOP	4.4 mm	Voltage - Unbuffered	-40 °C	105 °C	R-2R	0.25 LSB	1 LSB	2.7 V	5.5 V	13.5 V	19.8 V	-13.5 V	1 count	No	16 bits
Texas Instruments DAC8871SBPW	SPI	External	1 µs	Surface Mount	0.173 in	16-TSSOP	4.4 mm	Voltage - Unbuffered	-40 °C	105 °C	R-2R	0.25 LSB	1 LSB	2.7 V	5.5 V	13.5 V	19.8 V	-13.5 V	1 count	No	16 bits
Texas Instruments DAC8871EVM	DSP MICROWIRE™ QSPI™ Serial SPI™																				16 bits	1 µs	Board(s)	Voltage	Board	1	DAC8871
Texas Instruments DAC8871SPWR	SPI	External	1 µs	Surface Mount	0.173 in	16-TSSOP	4.4 mm	Voltage - Unbuffered	-40 °C	105 °C	R-2R	0.25 LSB	1 LSB	2.7 V	5.5 V	13.5 V	19.8 V	-13.5 V	1 count	No	16 bits
Texas Instruments DAC8871SBPWR	SPI	External	1 µs	Surface Mount	0.173 in	16-TSSOP	4.4 mm	Voltage - Unbuffered	-40 °C	105 °C	R-2R	0.25 LSB	1 LSB	2.7 V	5.5 V	13.5 V	19.8 V	-13.5 V	1 count	No	16 bits
Texas Instruments DAC8871SPW	SPI	External	1 µs	Surface Mount	0.173 in	16-TSSOP	4.4 mm	Voltage - Unbuffered	-40 °C	105 °C	R-2R	0.25 LSB	1 LSB	2.7 V	5.5 V	13.5 V	19.8 V	-13.5 V	1 count	No	16 bits

Catalog

16-Bit Single Channel, Serial Interface, +/-18V (High Voltage Bipolar) Output DAC

Description

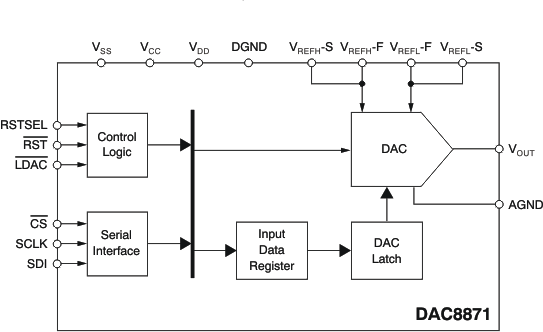

The DAC8871 is a 16-bit, single-channel, serial input, voltage output digital-to-analog converter (DAC). The output range is determined by the reference voltage, VREFHand VREFL. By properly selecting the reference, the output can be unipolar or bipolar, and up to \xB118V. The DAC8871 provides excellent linearity (1LSB INL), low noise, and fast settling (1ms to 1LSB of full scale output) over the specified temperature range of -40°C to +105°C. The output is unbuffered, which reduces the power consumption and the error introduced by the buffer. This device features a standard high-speed clock (up to 50MHz), and a 3V or 5V SPI serial interance to communicate with the DSP or microprocessors. For optimum performance, a set of Kelvin connections to external reference are provided. The DAC8871 is available in a TSSOP-16 package. The DAC8871 is a 16-bit, single-channel, serial input, voltage output digital-to-analog converter (DAC). The output range is determined by the reference voltage, VREFHand VREFL. By properly selecting the reference, the output can be unipolar or bipolar, and up to \xB118V. The DAC8871 provides excellent linearity (1LSB INL), low noise, and fast settling (1ms to 1LSB of full scale output) over the specified temperature range of -40°C to +105°C. The output is unbuffered, which reduces the power consumption and the error introduced by the buffer. This device features a standard high-speed clock (up to 50MHz), and a 3V or 5V SPI serial interance to communicate with the DSP or microprocessors. For optimum performance, a set of Kelvin connections to external reference are provided. The DAC8871 is available in a TSSOP-16 package.
