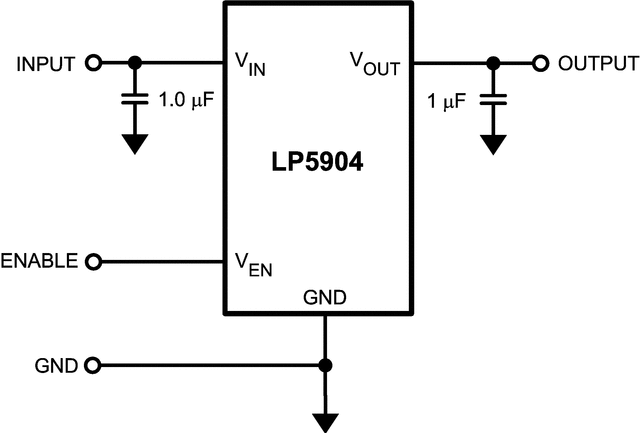

LP5904 Series

Catalog

200-MA, LOW-NOISE, HIGH-PSRR, LOW-IQ, LOW-DROPOUT VOLTAGE REGULATOR WITH LOW-IQ & ENABLE

Part	Current - Quiescent (Iq)	Output Type	Operating Temperature (Min)	Operating Temperature (Max)	Control Features	Output Configuration	Voltage - Output (Min/Fixed)	Package Name	Number of Regulators	Package / Case	Current - Output	Current - Supply (Max)	PSRR (Minimum)	PSRR (Maximum)	Voltage Dropout (Max)	Voltage - Input (Max)	Mounting Type	Protection Features	Package Length	Package Width	Supplied Contents	Board Type	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Regulator Type	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Utilized IC / Part	Contents
Texas Instruments LP5904TME-2.85/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	2.85 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TME-1.2/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	1.2 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit	0.9 mm	0.9 mm
Texas Instruments LP5904TME-1.2/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	1.2 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TME-3.1/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	3.1 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TM-2.85EV/NOPB											200 mA										Board(s)	Fully Populated	1	Single	1	Positive Fixed	5.5 V	2.2 V	LP5904	Board
Texas Instruments LP5904TMX-2.85/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	2.85 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TMX-1.2/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	1.2 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TMX-3.1/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	3.1 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TME-2.8/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	2.8 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
Texas Instruments LP5904TMX-2.8/NOPB	50 µA	Fixed	-40 °C	85 °C	Enable	Positive	2.8 V	4-DSBGA	1	4-WFBGA DSBGA	200 mA	230 µA	30 dB	88 dB	0.15 V	5.5 V	Surface Mount	Over Temperature Short Circuit
