ADC3421 Series
Manufacturer: Texas Instruments
Beta
⌘K
QUAD-CHANNEL 12-BIT 25-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)
| Part | Package Length | Package Name | Package Width | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Package / Case | Data Interface | Configuration | Number of Bits | Sampling Rate (Per Second) | Mounting Type | Number of A/D Converters | Architecture | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Features | Number of Inputs | Reference Type | Operating Temperature (Min) | Operating Temperature (Max) | Input Type | Supplied Contents | Utilized IC / Part | Power (Typ) | Contents | Input Voltage (Value) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 8 mm | 56-QFN | 8 mm | 1.9 V | 1.7 V | 56-VFQFN Exposed Pad | LVDS - Serial | ADC | 12 bits | 25 MHz | Surface Mount | 4 count | Pipelined | 1.7 V | 1.9 V | Simultaneous Sampling | 4 | External Internal | -40 °C | 85 °C | Differential | |||||
 Texas Instruments | 8 mm | 56-QFN | 8 mm | 56-VFQFN Exposed Pad | 12 bits | Surface Mount | ||||||||||||||||||||

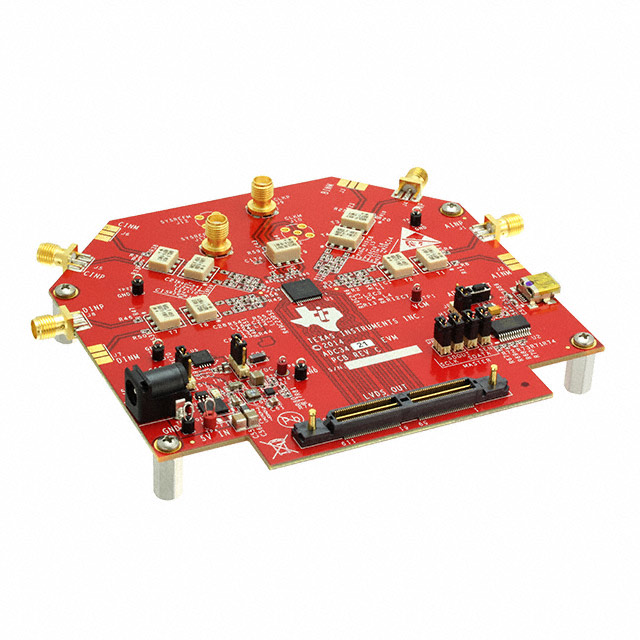

 Texas Instruments | LVDS - Serial | 12 bits | 25 MHz | 4 count | Board(s) | ADC3421 | 177 mW | Board | 2 Vpp |
