ADC104S051 Series
Manufacturer: Texas Instruments
Beta
⌘K

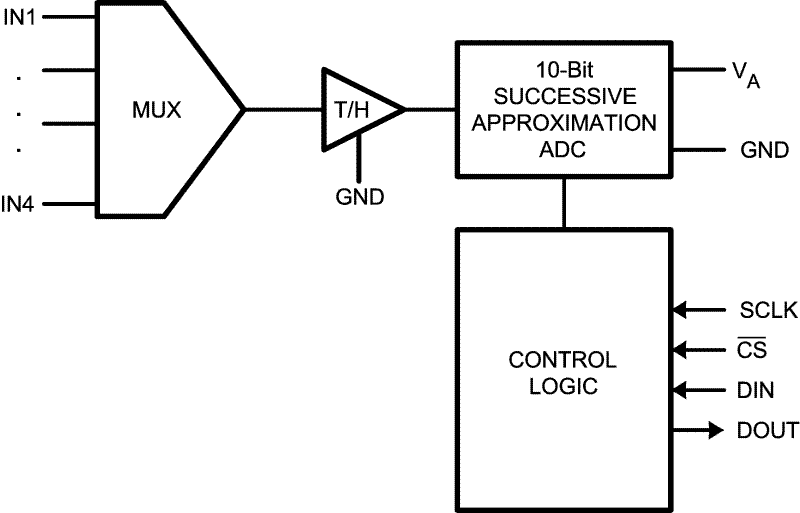

4 CHANNEL 200 KSPS TO 500 KSPS, 10-BIT A/D CONVERTER
| Part | Package Length | Package Name | Package Width | Architecture | Input Type | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Number of Inputs | Number of A/D Converters | Data Interface | Reference Type | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Sampling Rate (Per Second) | Configuration | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Ratio - ADC | Ratio - S/H | Number of Bits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 0.118 in | 10-MSOP 10-TFSOP 10-VSSOP | 3 mm | SAR | Single Ended | 2.7 V | 5.25 V | 4 | 1 count | DSP SPI | Supply | Surface Mount | -40 °C | 85 °C | 500 kHz | MUX-S/H-ADC | 5.25 V | 2.7 V | 1 | 1 | 10 bits |
