LMH2191 Series

Catalog

LMH2191 LOGIC AND TIMING EVALUATION BOARD

Part	Supplied Contents	Embedded	Primary Attributes	Secondary Attributes	Utilized IC / Part	Type	Function	Contents	Differential Output	Differential Input	Input Ratio	Output Ratio	Number of Circuits	Package / Case	Frequency - Max	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Input	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output

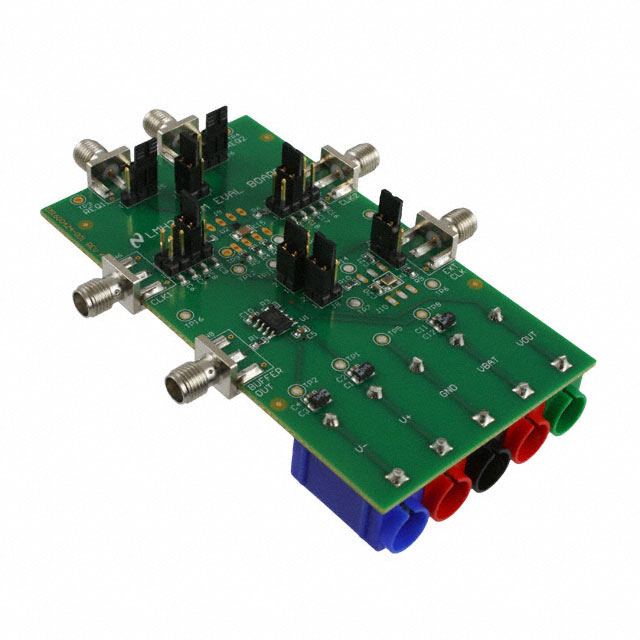

Texas Instruments LMH2191TMEVAL/NOPB	Board(s)	No	One Input Clock Two Output Clocks	Independent Clock Requests Inverted Clock Outputs	LMH2191	Timing	Clock Buffer Driver Receiver Translator	Board

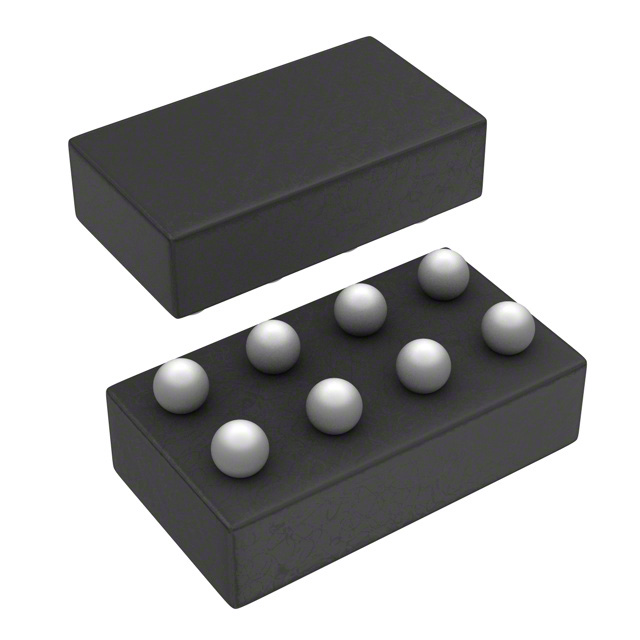

Texas Instruments LMH2191TMX/NOPB						Fanout Buffer (Distribution)			No	No	1	2	1	8-WFBGA DSBGA	52 MHz	8-DSBGA	-40 °C	85 °C	Clock	Surface Mount	2.5 V	5.5 V	Clock
Texas Instruments LMH2191TME/NOPB						Fanout Buffer (Distribution)			No	No	1	2	1	8-WFBGA DSBGA	52 MHz	8-DSBGA	-40 °C	85 °C	Clock	Surface Mount	2.5 V	5.5 V	Clock
