SN7414 Series

Catalog

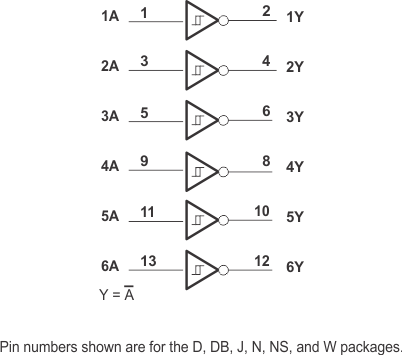

6-CH, 4.75-V TO 5.25-V BIPOLAR INVERTERS WITH SCHMITT-TRIGGER INPUTS

Part	Package Name	Mounting Type	Features	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Input Logic Level - Low (Voltage)	Current - Output High	Current - Output Low	Input Logic Level - High	Package Width	Package Length	Number of Circuits	Logic Type	Number of Inputs	Max Propagation Delay	Max CL	Operating Temperature (Max)
Texas Instruments SN7414D	14-SOIC	Surface Mount	Schmitt Trigger	5.25 V	4.75 V	0.6 V	800 µA	16 mA	2 V	3.9 mm	0.154 in	6	Inverter	1	22 ns	15 pF	70 °C
Texas Instruments SN7414NSR	14-SO 14-SOIC	Surface Mount	Schmitt Trigger	5.25 V	4.75 V	0.6 V	800 µA	16 mA	2 V	5.3 mm	0.209 in	6	Inverter	1	22 ns	15 pF	70 °C
Texas Instruments SN7414DR	14-SOIC	Surface Mount	Schmitt Trigger	5.25 V	4.75 V	0.6 V	800 µA	16 mA	2 V	3.9 mm	0.154 in	6	Inverter	1	22 ns	15 pF	70 °C
Texas Instruments SN7414N	14-DIP 14-PDIP	Through Hole	Schmitt Trigger	5.25 V	4.75 V	0.6 V	800 µA	16 mA	2 V	7.62 mm	0.3 in	6	Inverter	1	22 ns	15 pF	70 °C
Texas Instruments SN7414DG4	14-SOIC	Surface Mount	Schmitt Trigger	5.25 V	4.75 V	0.6 V	800 µA	16 mA	2 V	3.9 mm	0.154 in	6	Inverter	1	22 ns	15 pF	70 °C
