LM34922 Series

Catalog

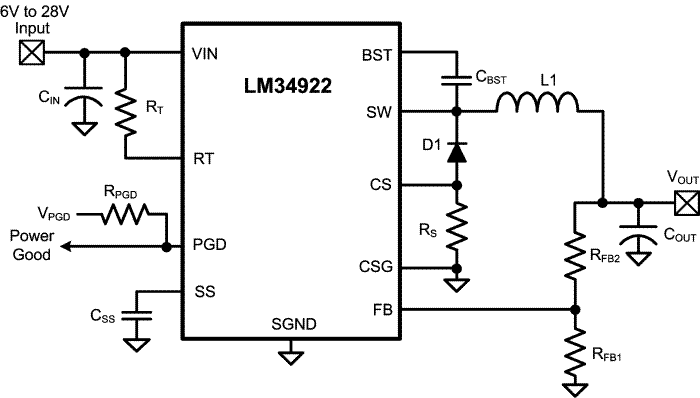

6-28V, 2A CONSTANT ON-TIME NON-SYNCHRONOUS BUCK REGULATOR WITH ADJUSTABLE CURRENT LIMIT

Part	Function	Synchronous Rectifier	Topology	Package Length	Package Name	Package Width	Voltage - Input (Min)	Frequency - Switching	Number of Outputs	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Configuration	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Output (Max)	Current - Output	Voltage - Input (Max)
Texas Instruments LM34922MY/NOPB	Step-Down	No	Buck	0.118 in	10-HVSSOP 10-PowerTFSOP 10-MSOP	3 mm	6 V	1 MHz	1	Adjustable	125 °C	-40 °C	Positive	Surface Mount	2.51 V	28 V	2 A	28 V
Texas Instruments LM34922MYX/NOPB	Step-Down	No	Buck	0.118 in	10-HVSSOP 10-PowerTFSOP 10-MSOP	3 mm	6 V	1 MHz	1	Adjustable	125 °C	-40 °C	Positive	Surface Mount	2.51 V	28 V	2 A	28 V
