74CB3Q3253 Series

3.3-V, 4:1, 2-channel FET Bus Switch

Catalog

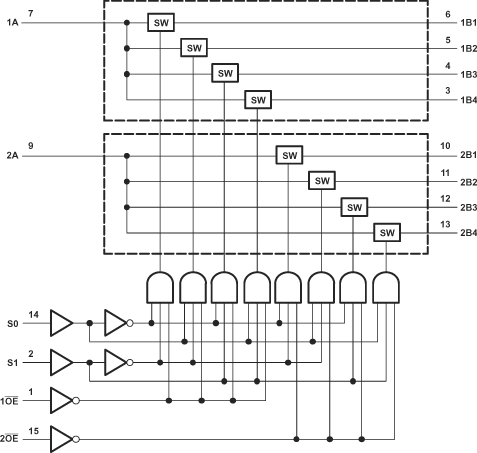

3.3-V, 4:1, 2-channel FET Bus Switch

Part	Package Width	Package Name	Package Length	Type	Independent Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Voltage Supply Source	Circuit	Package / Case
Texas Instruments SN74CB3Q3253RGYR	3.5 mm	16-VQFN	4 mm	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1	16-VFQFN Exposed Pad
Texas Instruments SN74CB3Q3253PWR	4.4 mm	16-TSSOP	0.173 in	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1
Texas Instruments SN74CB3Q3253DGVR	4.4 mm	16-TFSOP 16-TVSOP	0.173 in	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1
Texas Instruments SN74CB3Q3253PW	4.4 mm	16-TSSOP	0.173 in	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1
Texas Instruments SN74CB3Q3253DBQR	3.9 mm	16-SSOP	0.154 in	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1
Texas Instruments SN74CB3Q3253PWRG4	4.4 mm	16-TSSOP	0.173 in	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1
Texas Instruments 74CB3Q3253DBQRG4	3.9 mm	16-SSOP	0.154 in	Multiplexer/Demultiplexer	1	-40 °C	85 °C	Surface Mount	3.6 V	2.3 V	Single Supply	2 x 4:1

Catalog

3.3-V, 4:1, 2-channel FET Bus Switch

Description

The SN74CB3Q3253 device is a high-bandwidth FET bus switch using a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input and output (I/O) ports. The SN74CB3Q3253 device is a high-bandwidth FET bus switch using a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input and output (I/O) ports.
