TAS5720 Series

Automotive, 25-W, 1-ch , 4.5- to 26.4-V supply digital input Class-D audio amplifier

Catalog

Automotive, 25-W, 1-ch , 4.5- to 26.4-V supply digital input Class-D audio amplifier

Part	Operating Temperature (Max)	Operating Temperature (Min)	Type	Grade	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Package Width	Package Name	Package Length	Output Type	Load Impedance	Maximum Output Power (per Channel)	Channels	Features	Package / Case	Qualification
Texas Instruments TAS5720ATDAPQ1	105 °C	-40 °C	Class D	Automotive	26.4 V	4.5 V	Surface Mount	6.1 mm	32-HTSSOP 32-PowerTSSOP	0.24 in	1-Channel (Mono)	4 Ohm	20 W	1
Texas Instruments TAS5720LRSMT	85 °C	-25 °C	Class D		16.5 V	4.5 V	Surface Mount	4 mm	32-VQFN	4 mm	1-Channel (Mono)	4 Ohm	20 W	1	Depop Short-Circuit and Thermal Protection	32-VFQFN Exposed Pad
Texas Instruments TAS5720MRSMR	85 °C	-25 °C	Class D		26.4 V	4.5 V	Surface Mount	4 mm	32-VQFN	4 mm	1-Channel (Mono)	4 Ohm	20 W	1	Depop Short-Circuit and Thermal Protection	32-VFQFN Exposed Pad
Texas Instruments TAS5720ATDAPRQ1	105 °C	-40 °C	Class D	Automotive	26.4 V	4.5 V	Surface Mount	6.1 mm	32-HTSSOP 32-PowerTSSOP	0.24 in	1-Channel (Mono)	8 Ohm	20 W	1			AEC-Q100
Texas Instruments TAS5720LRSMR	85 °C	-25 °C	Class D		16.5 V	4.5 V	Surface Mount	4 mm	32-VQFN	4 mm	1-Channel (Mono)	4 Ohm	20 W	1	Depop Short-Circuit and Thermal Protection	32-VFQFN Exposed Pad

Catalog

Automotive, 25-W, 1-ch , 4.5- to 26.4-V supply digital input Class-D audio amplifier

Description

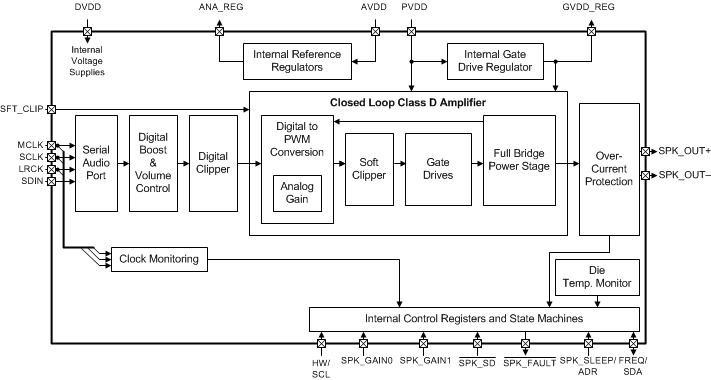

The TAS5720A-Q1 is a mono I2S input Class-D audio amplifier which is ideal for use in automotive emergency call (eCall), telematics, acoustic vehicle alerting system (AVAS) and EV/HEV sound generation applications. The device provides up to 25 W instantaneous power into 4 Ω at 10% THD+N at 14.4 V. The TAS5720A-Q1 also includes hardware and software (I²C) control modes, an integrated digital clipper, selectable gain options, and a wide power supply operating range (4.5 V – 26.4 V). The device is offered in a thermally enhanced 32-Pin TSSOP package. The TAS5720A-Q1 is a mono I2S input Class-D audio amplifier which is ideal for use in automotive emergency call (eCall), telematics, acoustic vehicle alerting system (AVAS) and EV/HEV sound generation applications. The device provides up to 25 W instantaneous power into 4 Ω at 10% THD+N at 14.4 V. The TAS5720A-Q1 also includes hardware and software (I²C) control modes, an integrated digital clipper, selectable gain options, and a wide power supply operating range (4.5 V – 26.4 V). The device is offered in a thermally enhanced 32-Pin TSSOP package.
