LM5066 Series
Manufacturer: Texas Instruments
Beta
⌘K
10-V TO 80-V HOT SWAP CONTROLLER WITH CURRENT, -VOLTAGE AND POWER MONITORING AND PMBUS
| Part | Internal Switch(s) | Applications | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Package Name | Current - Supply | Features | Type | Programmable Features | Number of Channels | Package Width | Package Length | Supplied Contents | Secondary Attributes | Function | Contents | Utilized IC / Part | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | No | General Purpose | 10 VDC | 80 V | 125 °C | -40 °C | Surface Mount | 28-HTSSOP 28-PowerTSSOP | 7.2 mA | PMBus | Hot Swap Controller Monitor | Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO | 1 | 4.4 mm | 0.173 in | ||||||
Texas Instruments | No | General Purpose | 10 VDC | 80 V | 125 °C | -40 °C | Surface Mount | 28-HTSSOP 28-PowerTSSOP | 7.2 mA | PMBus | Hot Swap Controller Monitor | Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO | 1 | 4.4 mm | 0.173 in | ||||||
Texas Instruments | No | General Purpose | 10 VDC | 80 V | 125 °C | -40 °C | Surface Mount | 28-HTSSOP 28-PowerTSSOP | 5.6 mA | PMBus | Hot Swap Controller Monitor | Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO | 1 | 4.4 mm | 0.173 in | ||||||
Texas Instruments | No | General Purpose | 10 VDC | 80 V | 125 °C | -40 °C | Surface Mount | 28-HTSSOP 28-PowerTSSOP | 7.2 mA | PMBus | Hot Swap Controller Monitor | Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO | 1 | 4.4 mm | 0.173 in | ||||||

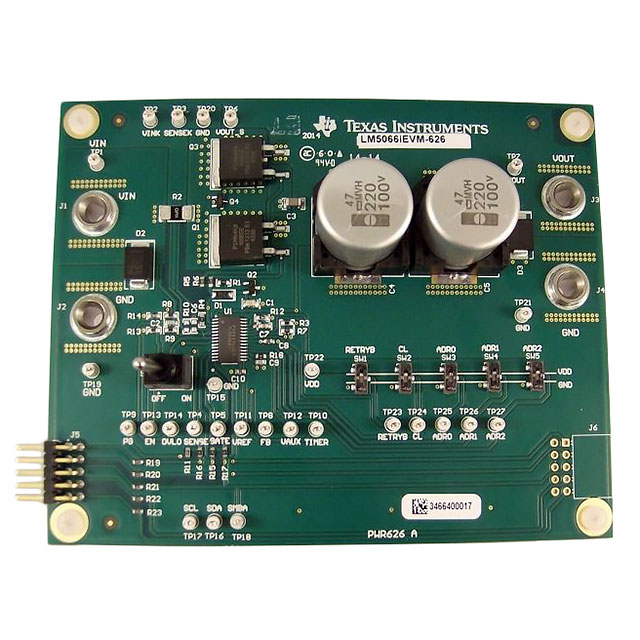

 Texas Instruments | Power Management | Board(s) | Graphical User Interface (GUI) | Hot Swap Controller | Board | LM5066I | No | ||||||||||||||
 Texas Instruments | Power Management | Board(s) Cable(s) | Graphical User Interface (GUI) | Hot Swap Controller | Board Cable | LM5066 | No | ||||||||||||||
 Texas Instruments | No | General Purpose | 10 VDC | 80 V | 125 °C | -40 °C | Surface Mount | 28-HTSSOP 28-PowerTSSOP | 5.6 mA | PMBus | Hot Swap Controller Monitor | Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO | 1 | 4.4 mm | 0.173 in |
