DRV10970 Series
Manufacturer: Texas Instruments
Beta
⌘K

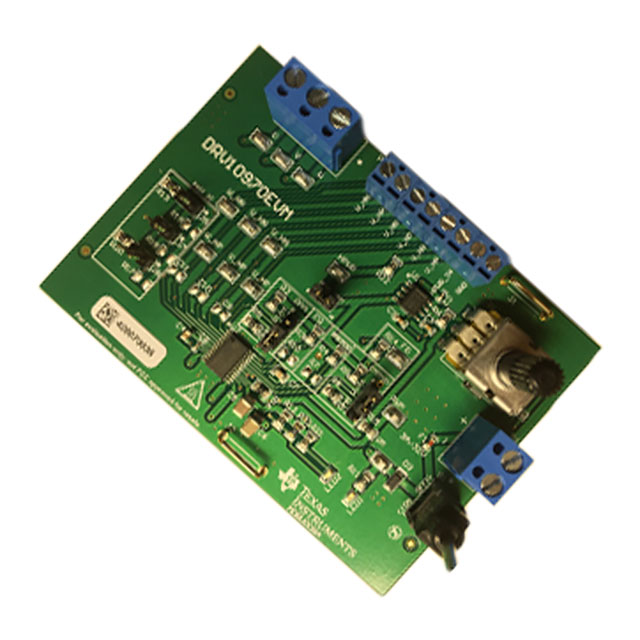

EVAL BOARD FOR DRV10970 BLDC MTR
| Part | Supplied Contents | Contents | Utilized IC / Part | Type | Function | Primary Attributes | Secondary Attributes | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Operating Temperature (Max) | Operating Temperature (Min) | Half-Bridge Count | Output Configuration | Package Width | Package Name | Package Length | Voltage - Load (Max) | Voltage - Load (Min) | Mounting Type | Motor Type - AC, DC | Interface | Current - Output | Applications | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Board | DRV10970 | Power Management | Driver Motor Controller | Motors (BLDC) | On-Board LEDs | |||||||||||||||||
 Texas Instruments | Control and Power Stage Driver - Fully Integrated | 18 V | 5 V | 125 °C | -40 °C | 3 | Half-Bridge | 4.4 mm | 24-HTSSOP 24-PowerTSSOP | 0.173 in | 18 V | 5 V | Surface Mount | Brushless DC (BLDC) | PWM | 1.5 A | General Purpose | Power MOSFET | ||||||
 Texas Instruments | Control and Power Stage Driver - Fully Integrated | 18 V | 5 V | 125 °C | -40 °C | 3 | Half-Bridge | 4.4 mm | 24-HTSSOP 24-PowerTSSOP | 0.173 in | 18 V | 5 V | Surface Mount | Brushless DC (BLDC) | PWM | 1.5 A | General Purpose | Power MOSFET |
