TPS51120 Series

Catalog

4.5-V TO 28-V, DUAL-CHANNEL SYNCHRONOUS BUCK CONTROLLER WITH LOW STANDBY CURRENT CONSUMPTION

Part	Mounting Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Output Phases	Package Width	Package Name	Package Length	Clock Sync	Topology	Function	Output Configuration	Synchronous Rectifier	Output Type	Control Features	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Total Output Count	Non-Isolated Output Count	Supplied Contents	Board Type	Utilized IC / Part	Regulator Topology	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Current - Output (Max)	Current - Output (Min)	Frequency - Switching	Voltage - Output	Main Purpose	Contents
Texas Instruments TPS51120RHBT	Surface Mount	32-VFQFN Exposed Pad	85 °C	-40 °C	2	1	5 mm	32-VQFN	5 mm	No	Buck	Step-Down	Positive	Yes	Transistor Driver	Enable On Time Control Power Good	28 V	4.5 V

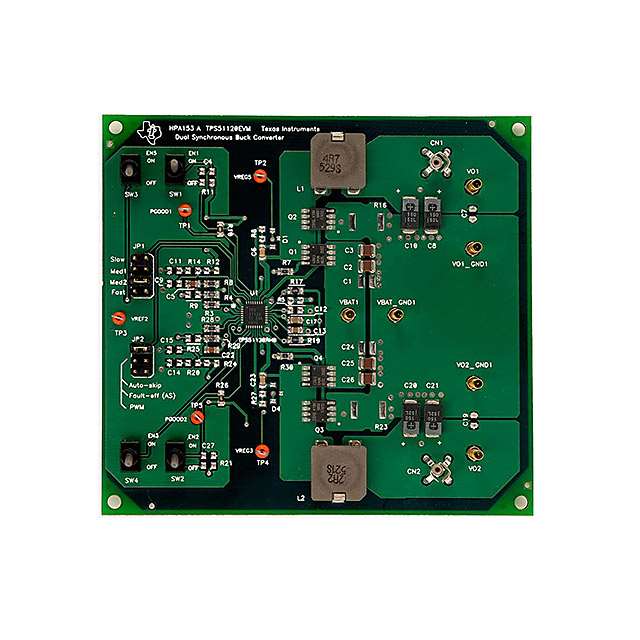

Texas Instruments TPS51120EVM-001															Non-Isolated				2	2 count	Board(s)	Fully Populated	TPS51120	Buck	25 V	8 V	6 A	6 A	280 kHz 430 kHz	3.3 V 5 VDC	DC/DC Step Down	Board
Texas Instruments TPS51120RHBR	Surface Mount	32-VFQFN Exposed Pad	85 °C	-40 °C	2	1	5 mm	32-VQFN	5 mm	No	Buck	Step-Down	Positive	Yes	Transistor Driver	Enable On Time Control Power Good	28 V	4.5 V
