LP3950 Series
Manufacturer: Texas Instruments
Beta
⌘K

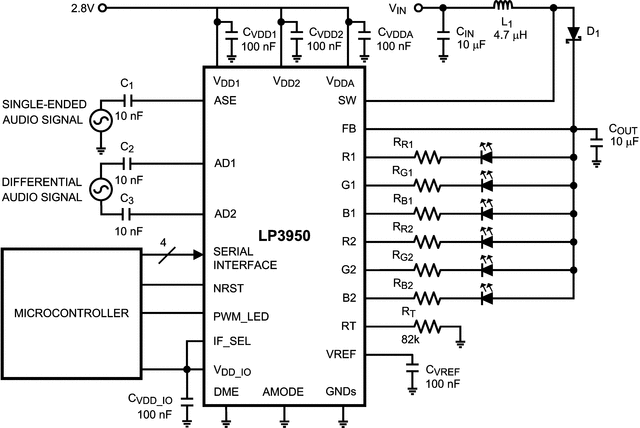

COLOR LED DRIVER WITH AUDIO SYNCHRONIZER
| Part | Number of Outputs | Voltage - Supply (Max) | Package / Case | Voltage - Supply (Min) | Package Name | Package Length | Package Width | Dimming | Voltage - Output | Frequency | Current - Output / Channel | Operating Temperature (Max) | Operating Temperature (Min) | Type | Internal Switch(s) | Mounting Type | Topology | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 6 | 2.9 V | 32-WFLGA | 2.7 V | 32-TLGA | 5.5 mm | 4.5 mm | PWM | 5 VDC | 2 MHz | 50 mA | 85 °C | -40 °C | DC DC Regulator | Yes | Surface Mount | Step-Up (Boost) | Backlight Camera Flash |
 Texas Instruments | 6 | 2.9 V | 32-WFLGA | 2.7 V | 32-TLGA | 5.5 mm | 4.5 mm | PWM | 5 VDC | 2 MHz | 50 mA | 85 °C | -40 °C | DC DC Regulator | Yes | Surface Mount | Step-Up (Boost) | Backlight Camera Flash |
