LM74800 Series
Manufacturer: Texas Instruments
Beta
⌘K
LM7480-Q1 IDEAL DIODE CONTROLLER
| Part | Supplied Contents | Type | Embedded | Utilized IC / Part | Function | Primary Attributes (Max) | Primary Attributes (Min) | Contents | Internal Switch(s) | FET Type | Delay Time - ON | Output Ratio | Input Ratio | Applications | Package / Case | Current - Supply | Mounting Type | Package Width | Package Name | Package Length | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Current - Output (Max) | Delay Time - OFF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

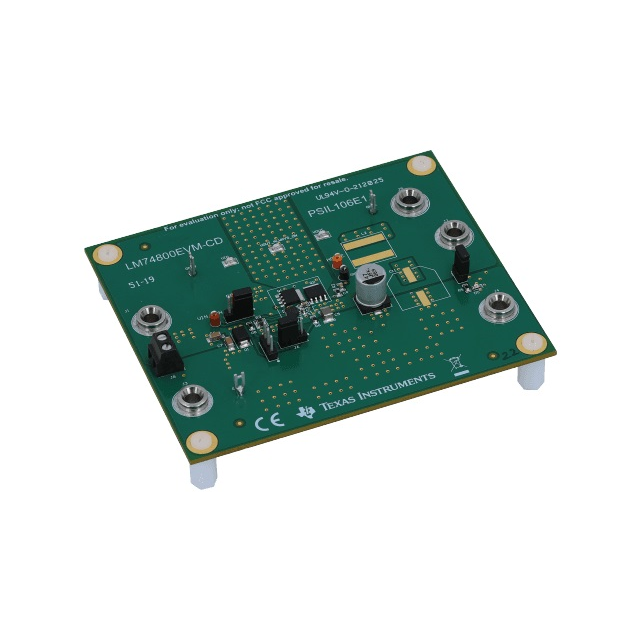

 Texas Instruments | Board(s) | Power Management | No | LM74800-Q1 | Ideal Diode Controller | 40 V | 3 V | Board | ||||||||||||||||||
 Texas Instruments | N+1 ORing Controller | No | N-Channel | 2.6 µs | 1 | 1 | General Purpose | 12-WFDFN Exposed Pad | 413 µA | Surface Mount Wettable Flank | 3 mm | 12-WSON | 3 mm | 125 °C | -55 °C | 3 V | 65 V | 2.6 A | 500 ns | |||||||

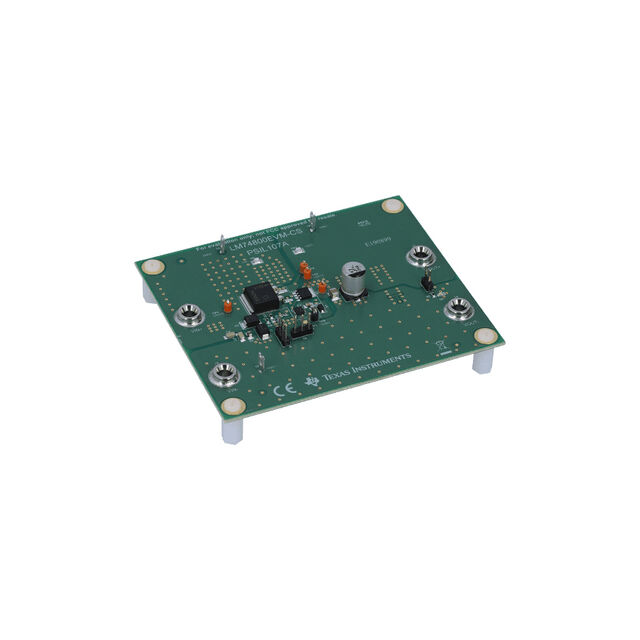

 Texas Instruments | Board(s) | Power Management | No | LM74800 | Ideal Diode Controller | Board |
