DRV3204 Series
Manufacturer: Texas Instruments
Beta
⌘K

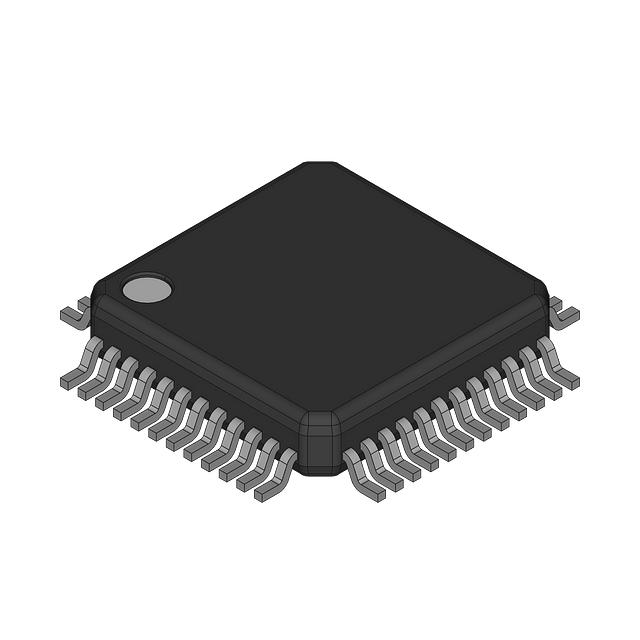

IC MTR DRIVER 5.3V-26.5V 48HTQFP
| Part | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Output Configuration Count | Output Configuration | Package Length | Package Name | Package Width | Operating Temperature (Max) | Operating Temperature (Min) | Grade | Mounting Type | Package / Case | Motor Type - AC, DC | Qualification | Function | Interface | Technology | Voltage - Load (Min) | Voltage - Load (Max) | Motor Type - Stepper | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 5.3 V | 26.5 V | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | 7 mm | 48-HTQFP | 7 mm | 125 °C | -40 °C | Automotive | Surface Mount | 48-PowerTQFP | Brushless DC (BLDC) | AEC-Q100 | Controller - Commutation Direction Management | SPI | |||||
 Texas Instruments | 5.3 V | 26.5 V | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | 7 mm | 48-HTQFP | 7 mm | 150 °C | -40 °C | Surface Mount | 48-PowerTQFP | Brushless DC (BLDC) | Controller - Commutation Direction Management | NMOS | 9.8 V | 40.5 V | Multiphase | General Purpose | |||
Texas Instruments | 5.3 V | 26.5 V | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | 7 mm | 48-HTQFP | 7 mm | 150 °C | -40 °C | Automotive | Surface Mount | 48-PowerTQFP | Brushless DC (BLDC) | AEC-Q100 | Controller - Commutation Direction Management | SPI |
