LM3559 Series
Manufacturer: Texas Instruments
Beta
⌘K

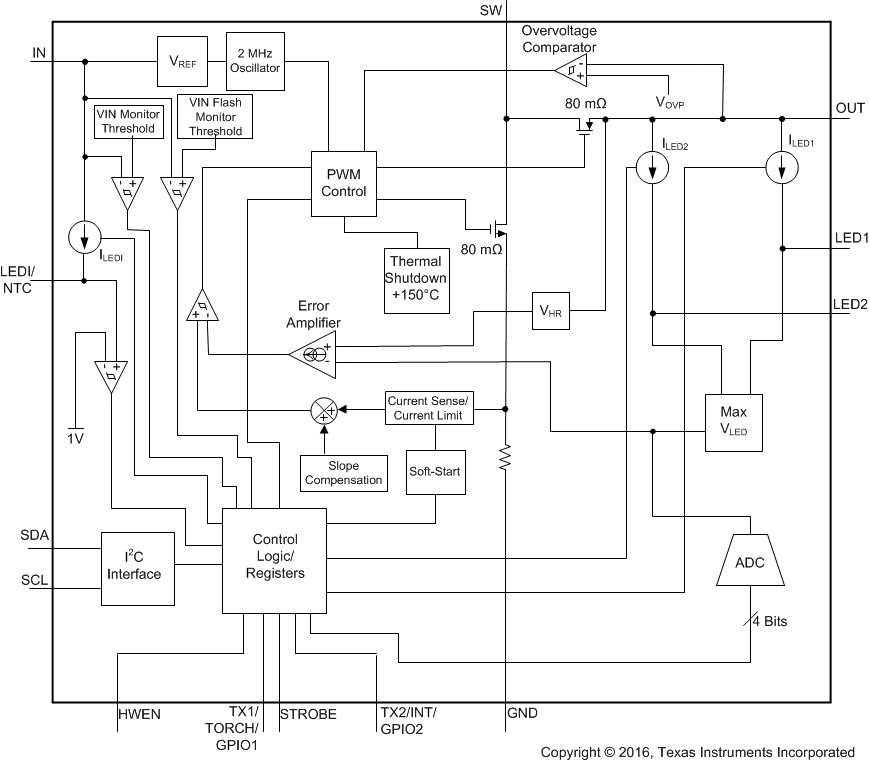

SYNCHRONOUS BOOST FLASH DRIVER WITH DUAL 900 MA HIGH SIDE CURRENT SOURCES (1.8A TOTAL FLASH CURRENT
| Part | Topology | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Package / Case | Dimming | Mounting Type | Voltage - Supply (Max) | Voltage - Supply (Min) | Voltage - Output | Type | Current - Output / Channel | Internal Switch(s) | Package Name | Number of Outputs | Frequency | Supplied Contents | Non-Isolated Output Count | Output Type | Total Output Count | Contents | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Up (Boost) | 85 °C | -40 °C | Camera Flash | 16-WFBGA DSBGA | I2C | Surface Mount | 5.5 V | 2.5 V | 5 VDC | DC DC Regulator | 900 mA | Yes | 16-DSBGA | 2 | 2 MHz | ||||||||
Texas Instruments | Step-Up (Boost) | 85 °C | -40 °C | Camera Flash | 16-WFBGA DSBGA | I2C | Surface Mount | 5.5 V | 2.5 V | 5 VDC | DC DC Regulator | 900 mA | Yes | 16-DSBGA | 2 | 2 MHz | ||||||||
 Texas Instruments | 900 mA | Board(s) | 2 count | Non-Isolated | 2 | Board | 2.5 V | 5.5 V | LM3559 |
