RF-HDT Series

Tag-it™ HF-I Plus Transponder Chip (Wafer, unprocessed)

Catalog

Tag-it™ HF-I Plus Transponder Chip (Wafer, unprocessed)

Part	Standards	Type	Frequency	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Package Name	Memory Type	Size / Dimension Length	Size / Dimension Width	Technology	Style	Size / Dimension Diameter	Writable Memory (User)
Texas Instruments RF-HDT-AJLE-G1	ISO 15693 ISO 18000-3	RFID Transponder	13.56 MHz	Surface Mount	-40 °C	85 °C	Die	Wafer
Texas Instruments RF-HDT-WNMC-M0	ISO 15693 ISO 18000-3	RFID Transponder	13.56 MHz	Surface Mount	-40 °C	85 °C	Die	Wafer
Texas Instruments RF-HDT-AJLC-G0	ISO 15693 ISO 18000-3	RFID Transponder	13.56 MHz	Surface Mount	-40 °C	85 °C	Die	Wafer

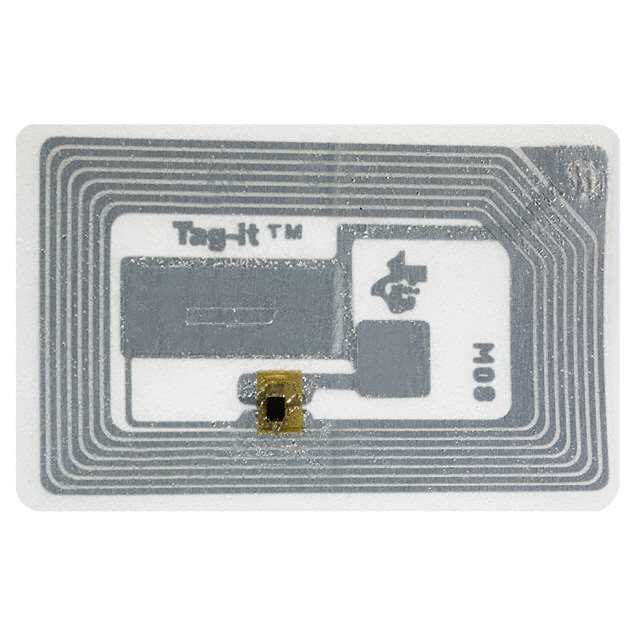

Texas Instruments RF-HDT-JMRB-A0	ISO 15693		13.56 MHz						Read Write	1.496 in	0.886 in
Texas Instruments RF-HDT-AJLS-G1	ISO 15693 ISO 18000-3	RFID Transponder	13.56 MHz	Surface Mount	-40 °C	85 °C	Die	Wafer
Texas Instruments RF-HDT-DVBE-N0	ISO 15693 ISO 18000-3		13.56 MHz		-25 °C	90 °C			Read Write	3 mm 22 mm	3 mm	Passive	Encapsulated	22 mm	256 b
Texas Instruments RF-HDT-DVBB-N2	ISO 15693 ISO 18000-3		13.56 MHz		-25 °C	90 °C			Read Write	3 mm 22 mm	3 mm	Passive	Encapsulated	22 mm	2 kb

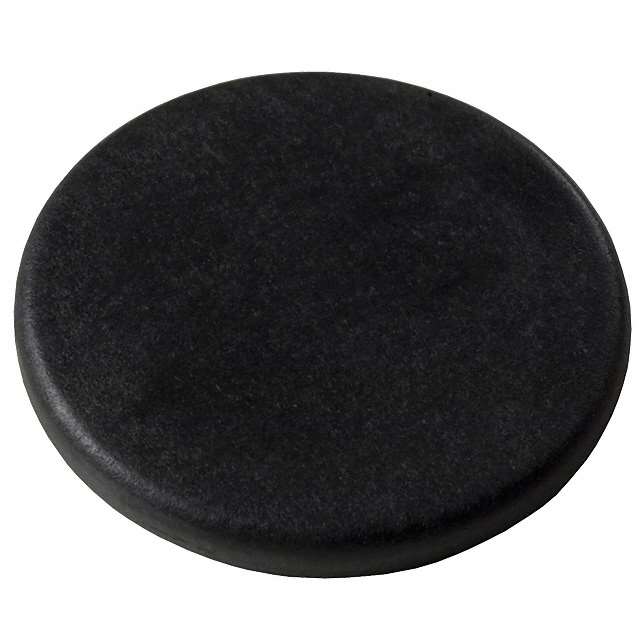

Texas Instruments RF-HDT-DVBB-N1	ISO 15693 ISO 18000-3		13.56 MHz		-25 °C	90 °C			Read Write	3 mm 22 mm	3 mm	Passive	Encapsulated	22 mm	2 kb
Texas Instruments RF-HDT-SJLC-G0	ISO 15693 ISO 18000-3	RFID Transponder	13.56 MHz	Surface Mount	-40 °C	85 °C	Die	Wafer

Catalog

Tag-it™ HF-I Plus Transponder Chip (Wafer, unprocessed)

Description

The Tag-it HF-I Plus Transponder IC is part of TI's 13.56-MHz product family, which is based on the ISO/IEC 15693 standard for contactless integrated circuit cards (vicinity cards) and ISO/IEC 18000-3 standard for item management. The Tag-it HF-I Plus Transponder IC builds the basis for various available inlay shapes, which are used as consumable smart labels in markets requiring quick and accurate identification of items The Tag-it HF-I Plus Transponder IC is part of TI's 13.56-MHz product family, which is based on the ISO/IEC 15693 standard for contactless integrated circuit cards (vicinity cards) and ISO/IEC 18000-3 standard for item management. The Tag-it HF-I Plus Transponder IC builds the basis for various available inlay shapes, which are used as consumable smart labels in markets requiring quick and accurate identification of items
