CC1312 Series

SimpleLink™ 32-bit Arm Cortex-M4F Sub-1 GHz wireless MCU with 352kB Flash

Catalog

SimpleLink™ 32-bit Arm Cortex-M4F Sub-1 GHz wireless MCU with 352kB Flash

Part	Type	Package / Case	Memory Type	Memory Size	Memory Size (Flash)	Sensitivity	Modulation	Package Length	Package Name	Package Width	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	GPIO Count	Current - Receiving	Frequency Range 3 (Max)	Frequency Range 3 (Min)	Frequency Range 2 (Min)	Frequency Range 2 (Max)	Frequency Range 1 (Max)	Frequency Range 1 (Min)	Serial Interfaces	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Current - Transmitting (Max)	Current - Transmitting (Min)	Data Rate (Max)	Power - Output	RF Family/Standard	Protocol	Memory Size (SRAM)	Frequency Range 5 (Max)	Frequency Range 5 (Min)	Frequency Range 4 (Max)	Frequency Range 4 (Min)
Texas Instruments CC1312R1F3RGZR	TxRx + MCU	48-VFQFN Exposed Pad	Flash RAM	80 kB	352 kB	-125 dBm	2FSK 4FSK GFSK	7 mm	48-VQFN	7 mm	Surface Mount	85 °C	-40 °C	30	5.8 mA	1.329 GHz	1.069 GHz	861 MHz	1.054 GHz	527 MHz	431 MHz	I2C I2S SPI UART	1.8 V	3.8 V	24.9 mA	8 mA	4 MBaud	14 dBm
Texas Instruments CC1312R74T0RGZR	TxRx + MCU	48-VFQFN Exposed Pad	Flash RAM		704 kB	-121 dBm	4-GFSK DSSS GFSK MSK OOK	7 mm	48-VQFN	7 mm	Surface Mount	105 °C	-40 °C	30	5.4 mA	527 MHz	431 MHz	359 MHz	439 MHz	351 MHz	287 MHz	GPIO I2C I2S SPI UART	1.8 V	3.8 V	24.9 mA	8 mA	500 kbps	14 dBm	Bluetooth	Bluetooth v5.2 Thread Wireless M-Bus Zigbee®	48 kB	1.315 GHz	1.076 GHz	1.054 GHz	861 MHz
Texas Instruments CC1312R1F3RGZT	TxRx + MCU	48-VFQFN Exposed Pad	Flash RAM	80 kB	352 kB	-125 dBm	2FSK 4FSK GFSK	7 mm	48-VQFN	7 mm	Surface Mount	85 °C	-40 °C	30	5.8 mA	1.329 GHz	1.069 GHz	861 MHz	1.054 GHz	527 MHz	431 MHz	I2C I2S SPI UART	1.8 V	3.8 V	24.9 mA	8 mA	4 MBaud	14 dBm

Catalog

SimpleLink™ 32-bit Arm Cortex-M4F Sub-1 GHz wireless MCU with 352kB Flash

Description

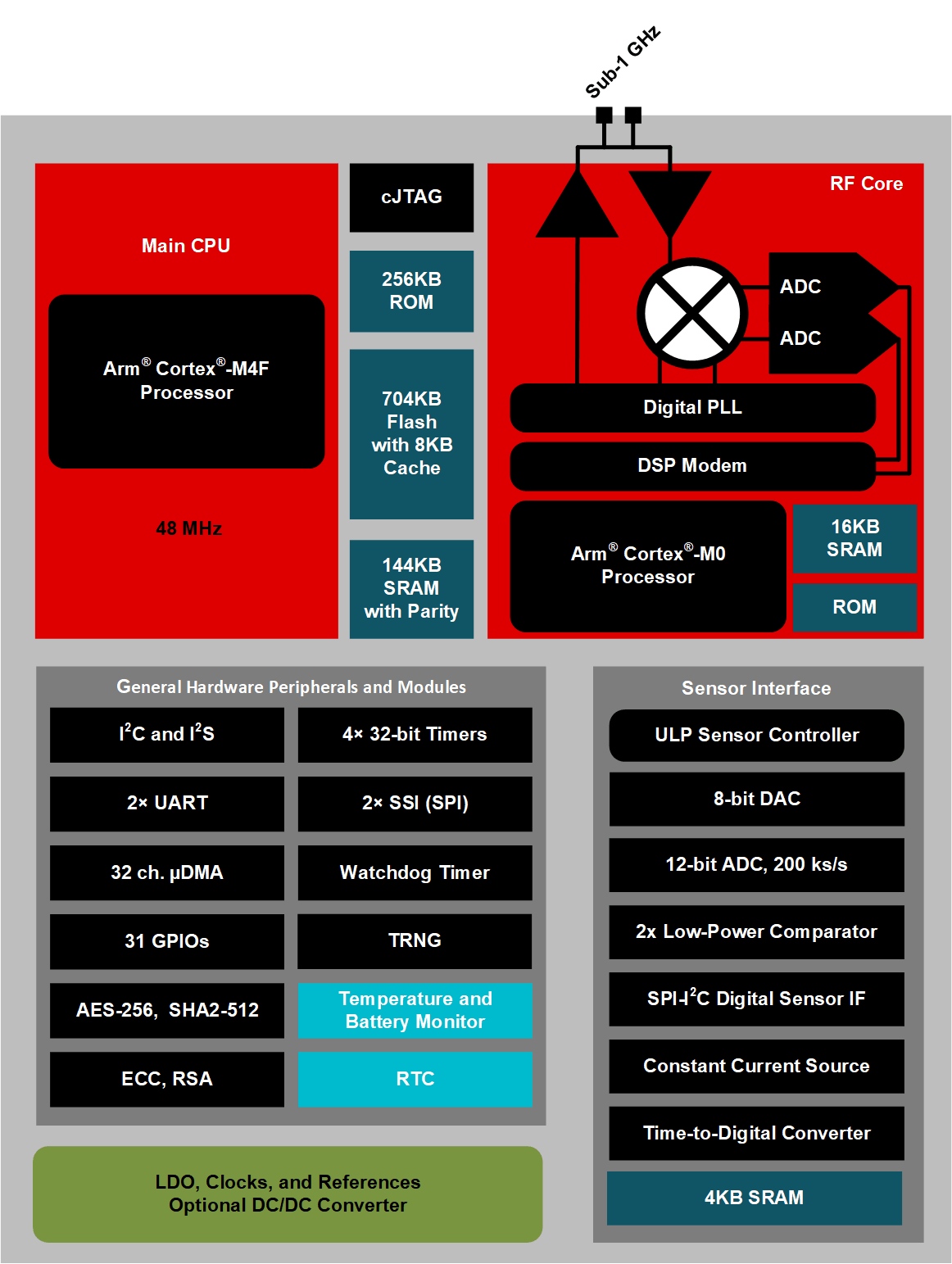

The SimpleLink™CC1312R device is a multiprotocol Sub-1 GHz wireless microcontroller (MCU) supporting IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY, Wi-SUN, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz). The device is optimized for low-power wireless communication and advanced sensing inbuilding security systems,HVAC,smart meters,medical,wired networking,portable electronics,home theater & entertainment, andconnected peripheralsmarkets. The highlighted features of this device include: The CC1312R device is part of the SimpleLink™ MCU platform, which consists ofWi-Fi,BluetoothLow Energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs that all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change. For more information, visitSimpleLink™ MCU platform. The SimpleLink™CC1312R device is a multiprotocol Sub-1 GHz wireless microcontroller (MCU) supporting IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY, Wi-SUN, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz). The device is optimized for low-power wireless communication and advanced sensing inbuilding security systems,HVAC,smart meters,medical,wired networking,portable electronics,home theater & entertainment, andconnected peripheralsmarkets. The highlighted features of this device include: The CC1312R device is part of the SimpleLink™ MCU platform, which consists ofWi-Fi,BluetoothLow Energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs that all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change. For more information, visitSimpleLink™ MCU platform.
