LM3642 Series
Manufacturer: Texas Instruments
Beta
⌘K
1.5A SYNCHRONOUS BOOST LED FLASH DRIVER W/ HIGH-SIDE CURRENT
| Part | Voltage - Supply (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Package Name | Package Length | Package Width | Type | Applications | Dimming | Voltage - Output | Number of Outputs | Frequency | Voltage - Supply (Max) | Topology | Current - Output / Channel | Internal Switch(s) | Package / Case | Supplied Contents | Total Output Count | Output Type | Non-Isolated Output Count | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 2.5 V | 85 °C | -40 °C | Surface Mount | 9-DSBGA | 1.6 mm | 1.6 mm | DC DC Regulator | Camera Flash | I2C | 5 VDC | 1 | 4 MHz | 5.5 V | Step-Up (Boost) | 1.5 A | Yes | 9-WFBGA DSBGA | ||||||
 Texas Instruments | 2.5 V | 85 °C | -40 °C | Surface Mount | 9-DSBGA | 1.6 mm | 1.6 mm | DC DC Regulator | Camera Flash | I2C | 5 VDC | 1 | 4 MHz | 5.5 V | Step-Up (Boost) | 1.5 A | Yes | 9-WFBGA DSBGA | ||||||

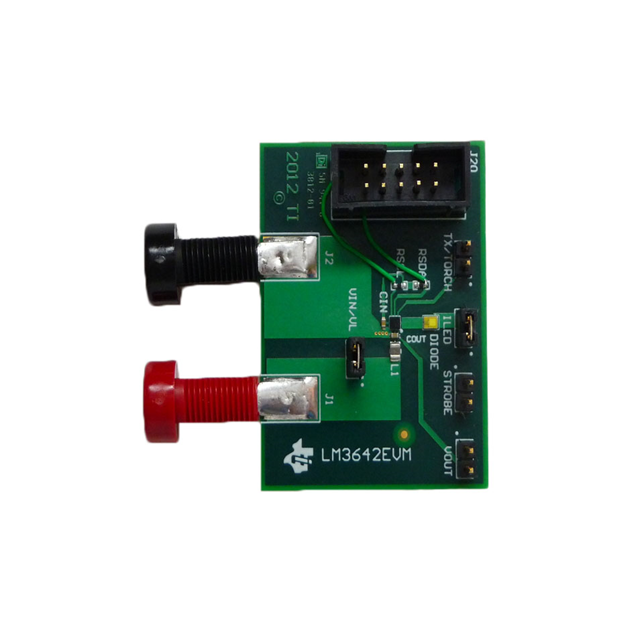

 Texas Instruments | 1.5 A | Board(s) | 1 | Non-Isolated | 1 count | LM3642 | Board | |||||||||||||||||
Texas Instruments | 2.5 V | 85 °C | -40 °C | Surface Mount | 9-DSBGA | 1.6 mm | 1.6 mm | DC DC Regulator | Camera Flash | I2C | 5 VDC | 1 | 4 MHz | 5.5 V | Step-Up (Boost) | 1.5 A | Yes | 9-WFBGA DSBGA | ||||||
 Texas Instruments | 2.5 V | 85 °C | -40 °C | Surface Mount | 9-DSBGA | 1.6 mm | 1.6 mm | DC DC Regulator | Camera Flash | I2C | 5 VDC | 1 | 4 MHz | 5.5 V | Step-Up (Boost) | 1.5 A | Yes | 9-WFBGA DSBGA | ||||||
 Texas Instruments | 1.5 A | Board(s) | 1 | Non-Isolated | 1 count | LM3642 | Board |
