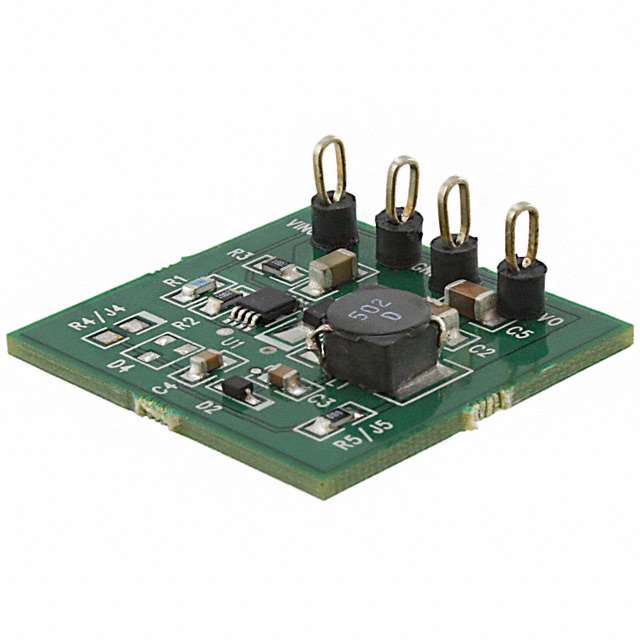

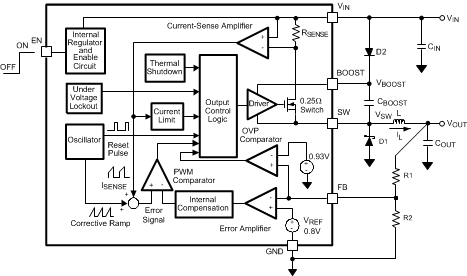

LM2738X/LM2738Y DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 3.3V OUTPUT EVALUATION BOARD
| Part | Supplied Contents | Board Type | Total Output Count | Output Type | Non-Isolated Output Count | Frequency - Switching | Voltage - Output | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Regulator Topology | Utilized IC / Part | Main Purpose | Contents | Current - Output | Voltage - Output (Min/Fixed) | Mounting Type | Synchronous Rectifier | Package / Case | Voltage - Output (Max) | Function | Number of Outputs | Package Length | Package Name | Package Width | Voltage - Input (Max) | Output Configuration | Voltage - Input (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Fully Populated | 1 | Non-Isolated | 1 count | 550 kHz | 3.3 V | 3 V | 20 V | Buck | LM2738 | DC/DC Step Down | Board | 1.5 A | ||||||||||||||||
 Texas Instruments | Adjustable | 550 kHz | 1.5 A | 0.8 V | Surface Mount | No | 8-WFDFN Exposed Pad | 18 V | Step-Down | 1 | 3 mm | 8-WSON | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck | |||||||||||
 Texas Instruments | Board(s) | Fully Populated | 1 | Non-Isolated | 1 count | 1.6 MHz | 3.3 V | 3 V | 20 V | Buck | LM2738 | DC/DC Step Down | Board | 1.5 A | ||||||||||||||||
 Texas Instruments | Adjustable | 550 kHz | 1.5 A | 0.8 V | Surface Mount | No | 18 V | Step-Down | 1 | 0.118 in | 8-HVSSOP 8-MSOP 8-PowerTSSOP | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck | ||||||||||||
 Texas Instruments | Adjustable | 550 kHz | 1.5 A | 0.8 V | Surface Mount | No | 18 V | Step-Down | 1 | 0.118 in | 8-HVSSOP 8-MSOP 8-PowerTSSOP | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck | ||||||||||||
 Texas Instruments | Board(s) | Fully Populated | 1 | Non-Isolated | 1 count | 1.6 MHz | 3.3 V | 3 V | 20 V | Buck | LM2738 | DC/DC Step Down | Board | 1.5 A | ||||||||||||||||
 Texas Instruments | Adjustable | 1.6 MHz | 1.5 A | 0.8 V | Surface Mount | No | 18 V | Step-Down | 1 | 0.118 in | 8-HVSSOP 8-MSOP 8-PowerTSSOP | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck | ||||||||||||
 Texas Instruments | Adjustable | 1.6 MHz | 1.5 A | 0.8 V | Surface Mount | No | 8-WFDFN Exposed Pad | 18 V | Step-Down | 1 | 3 mm | 8-WSON | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck | |||||||||||
 Texas Instruments | Adjustable | 1.6 MHz | 1.5 A | 0.8 V | Surface Mount | No | 18 V | Step-Down | 1 | 0.118 in | 8-HVSSOP 8-MSOP 8-PowerTSSOP | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck | ||||||||||||
 Texas Instruments | Adjustable | 1.6 MHz | 1.5 A | 0.8 V | Surface Mount | No | 8-WFDFN Exposed Pad | 18 V | Step-Down | 1 | 3 mm | 8-WSON | 3 mm | 20 V | Positive | 3 V | 125 °C | -40 °C | Buck |
