65LVDS100 Series

Catalog

EVAL MOD FOR SN65LVDS100

Part	Supplied Contents	Function	Contents	Utilized IC / Part	Type	Mounting Type	Capacitance - Input	Data Rate (Max)	Current - Supply	Delay Time	Operating Temperature (Min)	Operating Temperature (Max)	Input	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output	Number of Channels

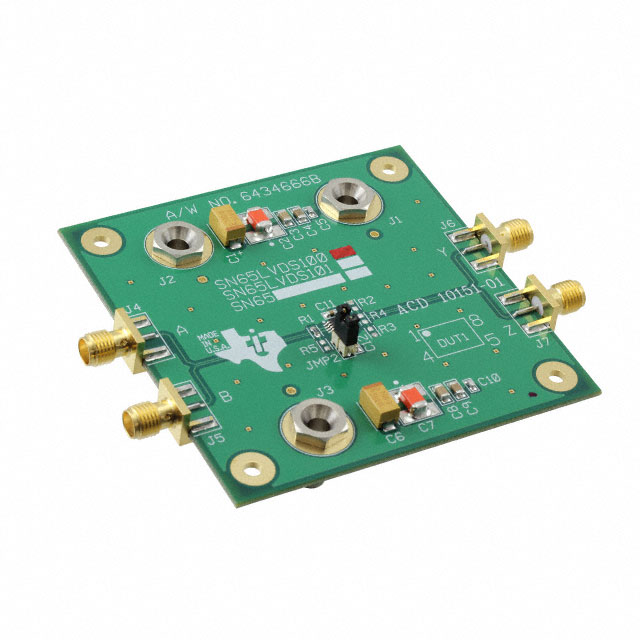

Texas Instruments SN65LVDS100EVM	Board(s)	LVDS Repeater/Translator	Board	SN65LVDS100	Interface
Texas Instruments SN65LVDS100DGK					Buffer ReDriver	Surface Mount	0.6 pF	2 Gbps	25 mA	470 ps	-40 °C	85 °C	CML LVDS LVPECL	3 mm	8-TSSOP 8-MSOP 8-VSSOP	0.118 in	3.6 V	3 V	LVDS	1
Texas Instruments SN65LVDS100DRG4					Buffer ReDriver	Surface Mount	0.6 pF	2 Gbps	25 mA	470 ps	-40 °C	85 °C	CML LVDS LVPECL	3.9 mm	8-SOIC	0.154 in	3.6 V	3 V	LVDS	1
Texas Instruments SN65LVDS100D					Buffer ReDriver	Surface Mount	0.6 pF	2 Gbps	25 mA	470 ps	-40 °C	85 °C	CML LVDS LVPECL	3.9 mm	8-SOIC	0.154 in	3.6 V	3 V	LVDS	1
Texas Instruments SN65LVDS100DGKR					Buffer ReDriver	Surface Mount	0.6 pF	2 Gbps	25 mA	470 ps	-40 °C	85 °C	CML LVDS LVPECL	3 mm	8-TSSOP 8-MSOP 8-VSSOP	0.118 in	3.6 V	3 V	LVDS	1
Texas Instruments SN65LVDS100DG4					Buffer ReDriver	Surface Mount	0.6 pF	2 Gbps	25 mA	470 ps	-40 °C	85 °C	CML LVDS LVPECL	3.9 mm	8-SOIC	0.154 in	3.6 V	3 V	LVDS	1
Texas Instruments SN65LVDS100DR					Buffer ReDriver	Surface Mount	0.6 pF	2 Gbps	25 mA	470 ps	-40 °C	85 °C	CML LVDS LVPECL	3.9 mm	8-SOIC	0.154 in	3.6 V	3 V	LVDS	1
