TPD3E001 Series
Manufacturer: Texas Instruments
Beta
⌘K

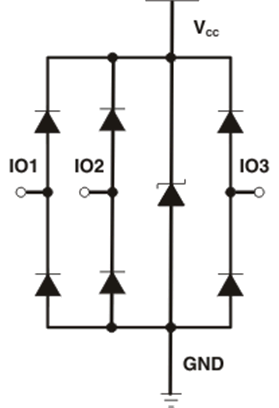

3 CHANNEL 1.5-PF, 5.5-V, ±8KV ESD PROTECTION DIODE WITH 1-NA MAX LEAKAGE & VCC PIN FOR USB 2.0
| Part | Voltage - Reverse Standoff (Max) | Type | Package Name | Power - Peak Pulse | Power Line Protection | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Package / Case | Voltage - Breakdown (Min) | Unidirectional Channels | Package Width | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 5.5 V | Steering (Rail to Rail) | SOT-5 | 90 W | Yes | Surface Mount | 85 °C | -40 °C | General Purpose | SOT-553 | 11 V | 3 | ||
 Texas Instruments | 5.5 V | Steering (Rail to Rail) | 6-SON | 90 W | Yes | Surface Mount | 85 °C | -40 °C | General Purpose | 6-WDFN Exposed Pad | 11 V | 3 | 3 mm | 3 mm |
 Texas Instruments | 5.5 V | Steering (Rail to Rail) | 6-SON | 90 W | Yes | Surface Mount | 85 °C | -40 °C | General Purpose | 6-UFDFN | 11 V | 3 | 1 mm | 1.45 mm |
 Texas Instruments | 5.5 V | Steering (Rail to Rail) | 6-SON | 90 W | Yes | Surface Mount | 85 °C | -40 °C | General Purpose | 6-UFDFN | 11 V | 3 | 1 mm | 1.45 mm |
