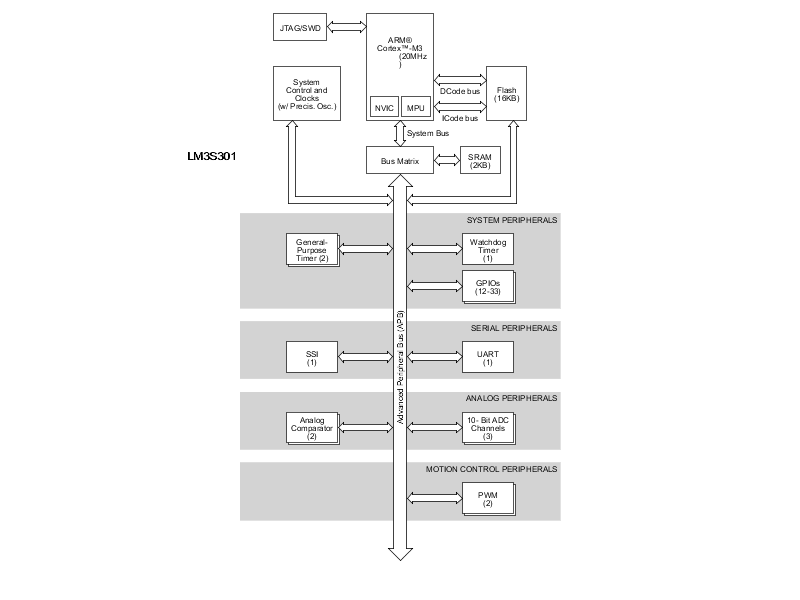

LM3S301 Series

Catalog

IC MCU 32BIT 16KB FLASH 48LQFP

Part	Program Memory Depth	Program Memory Width	Program Memory Size	Program Memory Type	Connectivity	Package Length	Package Name	Package Width	RAM Size Depth	RAM Size Width	Oscillator Type	Package / Case	A/D Channels	A/D Resolution (bits)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Mounting Type	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Peripherals	Number of I/O	Core Size (Bit Width)	Speed	Core Configuration
Texas Instruments LM3S301-EQN20-C2T	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-LQFP	7 mm	2 K	8 bit	Internal	48-LQFP	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	105 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-EGZ20-C2	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-VQFN	7 mm	2 K	8 bit	Internal	48-VFQFN Exposed Pad	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	105 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-IGZ20-C2	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-VQFN	7 mm	2 K	8 bit	Internal	48-VFQFN Exposed Pad	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-IQN20-C2T	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-LQFP	7 mm	2 K	8 bit	Internal	48-LQFP	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-IGZ20-C2T	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-VQFN	7 mm	2 K	8 bit	Internal	48-VFQFN Exposed Pad	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-EGZ20-C2T	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-VQFN	7 mm	2 K	8 bit	Internal	48-VFQFN Exposed Pad	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	105 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-IQN20-C2	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-LQFP	7 mm	2 K	8 bit	Internal	48-LQFP	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
Texas Instruments LM3S301-EQN20-C2	16 K	8 bit	16 KB	FLASH	Microwire SPI SSI UART USART	7 mm	48-LQFP	7 mm	2 K	8 bit	Internal	48-LQFP	3 count	10 bit	3.6 V	3 V	Surface Mount	ARM® Cortex®-M3	105 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	33	32 Bit	20 MHz	Single-Core
